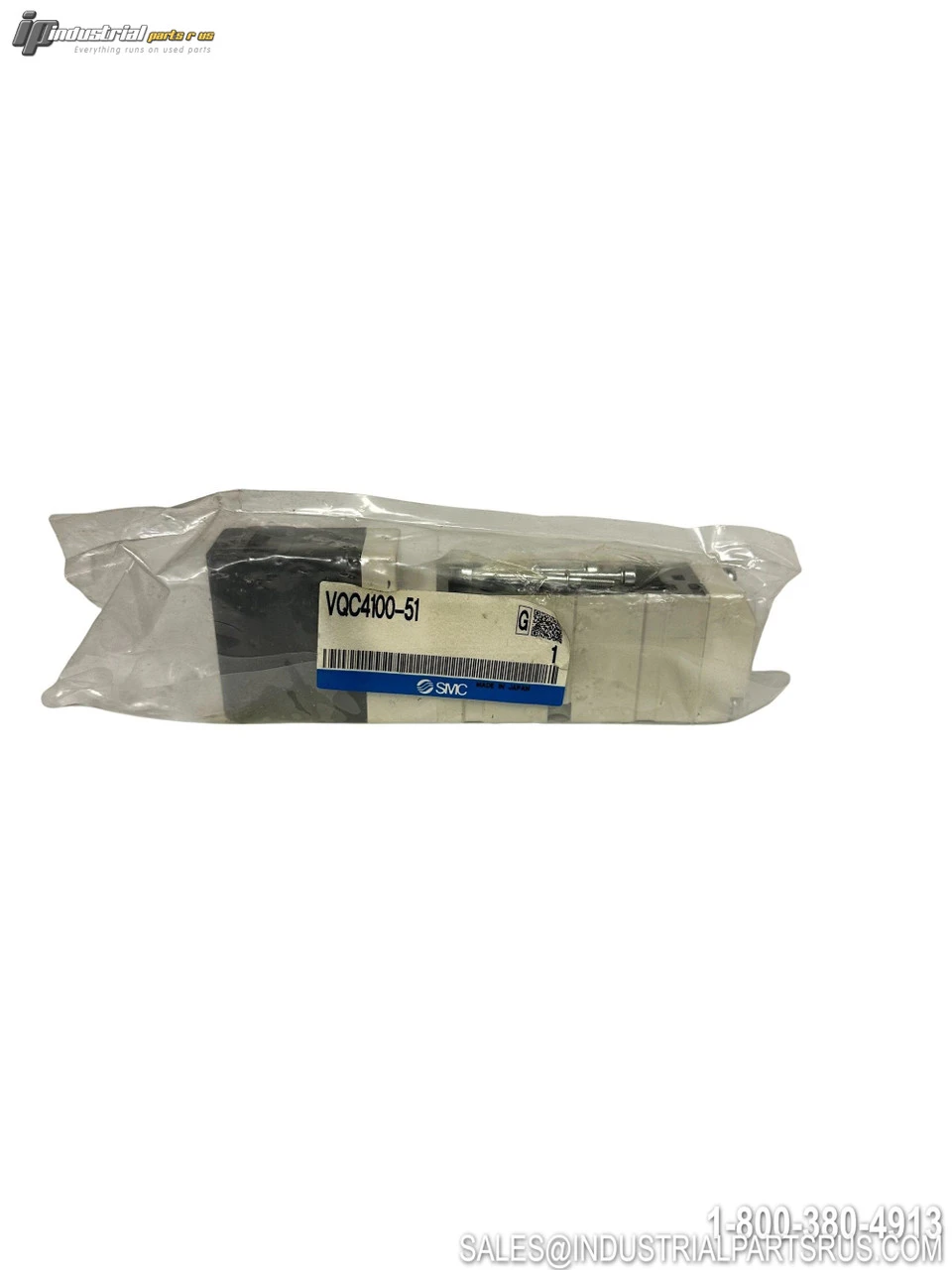

NEW SMC VQC4100-51

The SMC VQC4100-51 is a 5-port, 2-position single solenoid valve from SMC's VQC4000 series. This pneumatic valve features a plug-in base mount design with side porting and metal seal construction for reliable air and inert gas control applications. The valve offers outstanding response times, long service life of up to 100 million cycles, and is capable of driving cylinders up to 160mm diameter.
Specification
Value
Brand
SMC
Model/Part Number
VQC4100-51
Series
VQC4000
Operation Type
Pneumatic
Number of Ports
5
Number of Positions
2
Valve Function
2-Position Single
Valve Ways & Position
5 Way 2 Position
Coil Voltage
24VDC
Maximum Operating Pressure
145 PSI (1.0 MPa)
Power Consumption
0.95W (Standard)
Effective Area (Cv)
1.7 (Metal Seal)
Mounting Type
Plug-in Base Mount
Porting Specification
Side Ported
Seal Type
Metal Seal
Thread Type
Rc
Manual Override
Non-locking Push Type
Enclosure Rating
IP67
Suitable Fluid
Air/Inert Gas
Service Life
100 Million Cycles
Weight
0.507 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0828
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Enclosure Type: IP67
Part Number: VQC4100-51
Shelf: K-54
Model: VQC4100-51
MPN: VQC4100-51
Type: Solenoid Valve
