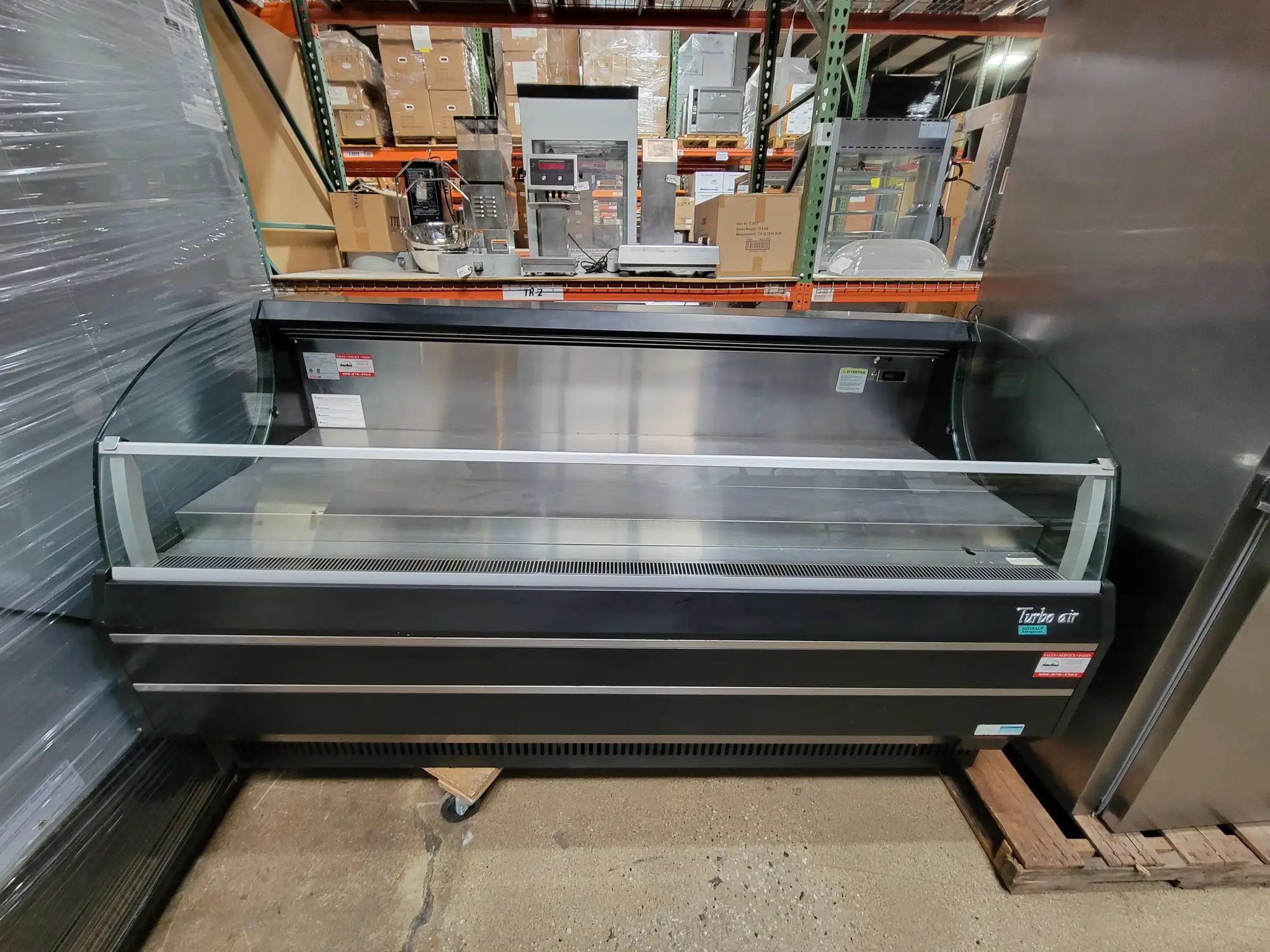

NEW Turbo Air TOM-75SW(B)-N

The Turbo Air TOM-75SW(B)-N Horizontal Open Display Case represents cutting-edge refrigeration technology designed for modern foodservice operations. This 13.5 cubic foot self-contained merchandiser features Turbo Air's patented self-cleaning condenser system and eco-friendly hydrocarbon refrigerant technology. With its elegant contemporary Euro design, safety reinforced tempered glass front shield, and glass side panels, this display case optimizes product visibility and aesthetics. Ideal for eye-catching displays and convenient access in high traffic areas, this unit showcases fresh salads, sandwiches, desserts, and beverages with maximum merchandising appeal.

Patented Self-Cleaning Condenser Technology

Automatic Daily Cleaning - Fine mesh filter catches dust while rotating brush moves up and down daily
Prevents System Failure - Keeps condenser clean and prevents breakdown from dust accumulation
Extended Equipment Life - Automatic maintenance ensures consistent performance and longevity
Reduced Service Calls - Self-maintaining system minimizes downtime and repair costs

Eco-Friendly Hydrocarbon Refrigeration

R-290 Refrigerant - Innovative and environmentally responsible hydrocarbon refrigerant
EPA and DOE Compliant - Meets 2017 standards for commercial refrigeration
Zero Ozone Depletion - ODP-0 rating protects the environment
Low Global Warming Impact - GWP-3 rating minimizes climate change contribution

Modern Design & Construction

300 Series Stainless Steel Interior - Including back wall and deck pans for durability and sanitation
Tempered Glass Construction - Safety reinforced front shield and glass side panels
Slim Line Design - Space-efficient footprint with maximum display capacity
Contemporary Euro Styling - Elegant design enhances any store application

Professional Performance

13.5 Cu. Ft. Capacity - Substantial storage for high-volume operations
Dual 3/4 HP Compressor - Powerful, efficient refrigeration system
Anti-Corrosion Coated Evaporator - Enhanced durability in humid environments
Foamed Polyurethane Insulation - High-density CFC-free cell insulation for superior temperature retention

Advanced Temperature Control

Digital Electronic Thermostat - Precise temperature control with defrost function
Solar Powered Digital Thermometer - Easy-to-read temperature monitoring
Front Air Intake - Rear air discharge for optimal airflow
Perforated Back Wall & Top - Improved air circulation throughout cabinet

Merchandising & Display Features

LED Interior Lighting - Energy-efficient illumination enhances product visibility
Three Bottom Shelves - Stainless steel solid shelves for flexible product arrangement
Standard Back-Guard - Improves airflow and protects stored products
Optimal Product Visibility - Glass construction on front and sides maximizes merchandising appeal

Convenience & Installation

No Plumbing Required - Simple plug-in installation for easy setup
Self-Contained System - Patented design eliminates complex installation
Available in White and Black - Standard color options to match any dA©cor
NEMA 5-20P Plug - Standard electrical connection for 115V operation

Ideal Applications

This versatile open display case is perfectly suited for:

Convenience Stores - Fresh sandwiches, salads, and grab-and-go items
Delis & Markets - Fresh prepared foods and specialty items
Cafeterias - Self-service food display in high traffic areas
Coffee Shops - Pastries, desserts, and beverages
Quick Service Restaurants - Fast access merchandising
Bakeries - Fresh baked goods and dessert displays
Supermarkets - Deli and prepared foods sections

Performance Specifications

Model: TOM-75SW(B)-N
Net Capacity: 13.5 cubic feet
Compressor: 3/4 HP x 2
Refrigerant: R-290 (Hydrocarbon)
Electrical: 115V/60Hz/1 Phase
Plug Type: NEMA 5-20P
Full Load Amperes: 11.3 Amps
Power Cord Length: 118 1/8 inches
Number of Shelves: 3 bottom shelves
Design: Horizontal open display with glass side panels

Dimensions & Weight

External Dimensions: 75 5/8"L x 34 5/8"D x 41 1/2"H
Internal Dimensions: 73 1/2"L x 24"D x 13"H
Shelf Sizes: 73" x 7" (Top), 73" x 14" (Middle), 73" x 9 3/4" (Low)
Net Weight: 498 lbs
Gross Weight: 680 lbs

Standard Features

Patented Self-Cleaning Condenser - Automatic daily maintenance system
300 Series Stainless Steel Interior - Back wall and deck pans included
Stainless Steel Solid Shelves - Three adjustable bottom shelves
Digital Electronic Thermostat - With defrost control
Solar Powered Digital Thermometer - Easy temperature monitoring
LED Interior Lighting - Energy-efficient product illumination
Anti-Corrosion Coated Evaporator - Extended component life
High-Density Polyurethane Insulation - CFC-free foam
Perforated Back Wall & Top - Enhanced air circulation
Standard Back-Guard - Improved airflow management

Operating Conditions

TOM models are designed to operate in an environment where temperature and humidity do not exceed 75°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product.

Why Choose the Turbo Air TOM-75SW(B)-N?

The Turbo Air TOM-75SW(B)-N delivers exceptional merchandising capabilities through its innovative self-cleaning condenser technology and eco-friendly refrigeration system. The patented self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily, eliminating the accumulation of dust that causes failure or breakdown of conventional refrigerators.

With hydrocarbon refrigerant R-290, this display case meets the latest EPA and DOE standards while protecting the environment with zero ozone depletion and minimal global warming impact. The elegant contemporary Euro design integrates great contours with durable structures, featuring safety reinforced tempered glass front shield and glass side walls that optimize product visibility and aesthetics.

The 300 series stainless steel interior with perforated back wall and top ensures improved air flow and easy cleaning, while the standard back-guard enhances circulation. LED interior lighting provides energy-efficient illumination, and the digital electronic thermostat with solar powered digital thermometer ensures precise temperature control. With simple plug-in installation requiring no plumbing, this self-contained system is ready to enhance your merchandising operations immediately.

Transform your product display with the innovation, efficiency, and beauty that only Turbo Air can deliver.
