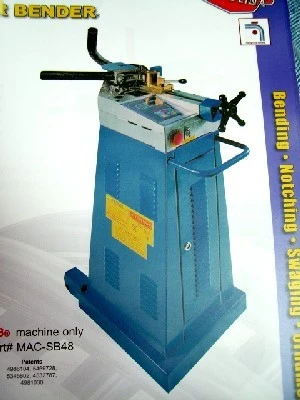

NEW ERCOLINA SB48-TC

MODEL: SB48-TC Super Bender

GENERAL SPECIFICATIONS

"Ideal for bending pipe, tube, squares, rectangles, solids, and other
profiles"

*Bends to 90 degrees in 7 seconds.
*Programmable material spring back.
*Patented tooling system with multiple radii available.
*Remote foot pedal allows hands free operation.
*Patented swing away counter bending die vise.
*Portable with base wheels and lift handle.
*Hex mount tooling system for rapid changeover.
*Electro-Mechanical

Mild Steel Tube Capacity: 1/4" - 2"
Pipe Capacity: 1-1/2" Schedule 40
Centerline Radius, Minimum: 2"
Centerline Radius, Maximum: 8-7/8"
Degree Of Bend: 0-210 Degree
Bending Speed: Variable
Square Tube Capacity: 1-1/2" .083"
Maximum CLR: 8-7/8"
Bend To CLR As Small As 2D With Non-Mandrel Tooling
Angle Range: 0 - 180 Degrees
Voltage: 110V Single Phase

EQUIPPED WITH

2 HP Motor
Touch Screen Programming: Unlimited storage with USB (30) bends per program

Approximate Dimensions: 22-1/2"L x 16-1/4"W x 39-1/2"H
Approximate Weight: 300 Lbs.

FACTORY SPECIFICATIONS SUBJECT TO CHANGE AND/OR MODIFICATION
