Overview

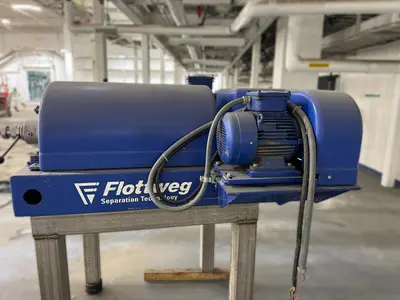

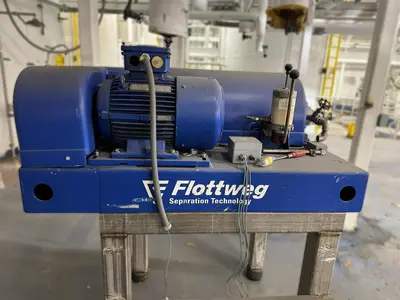

This Flottweg Z23-3/441 industrial solid bowl tricanter centrifuge was manufactured in Germany in 2004. This high-speed three-phase separation system features a horizontal design with stainless steel construction on product contact areas, maximum bowl speed of 6000 RPM, and sediment density capacity of 2.4 kg/dm³. The complete system includes an 11 kW main drive motor, 2 kW back drive motor, adjustable skimmer assembly, gearbox, grease pump, and Siemens digital control panel, all mounted on a stainless steel frame.
Design and Performance

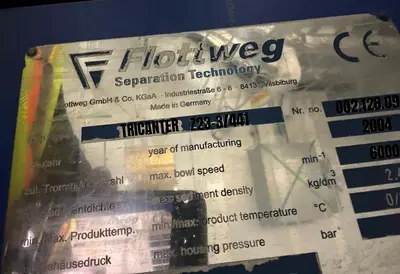

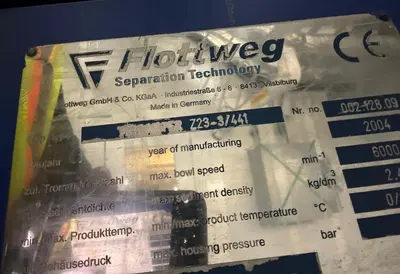

Model Specifications:
Type: Z23-3/441 (Three-Phase Solid Bowl Tricanter)
Nr. no.: 062.428.09
Year of Manufacturing: 2004
Manufacturer: Flottweg GmbH & Co. KGaA
Location: Industriestraße 6-8, 84137 Vilsbiburg, Germany
Made in Germany
CE Certified
Performance Specifications:
Max. Bowl Speed: 6000 RPM (min⁻¹)
Max. Sediment Density: 2.4 kg/dm³
Min./Max. Product Temperature: 0/100 °C
Separation Type: Three-phase (two liquids + one solid)
Construction:
Stainless steel construction (product contact areas)
Blue painted steel housing
Horizontal solid bowl tricanter configuration
Stainless steel support frame with adjustable legs
Integrated electric motors
Enclosed bowl design
Multiple discharge ports for three-phase separation
Access panels
System Components:
Flottweg Z23-3/441 tricanter centrifuge unit
11 kW main drive motor
2 kW back drive motor
Gearbox
Adjustable skimmer assembly
Grease pump
Base and casing

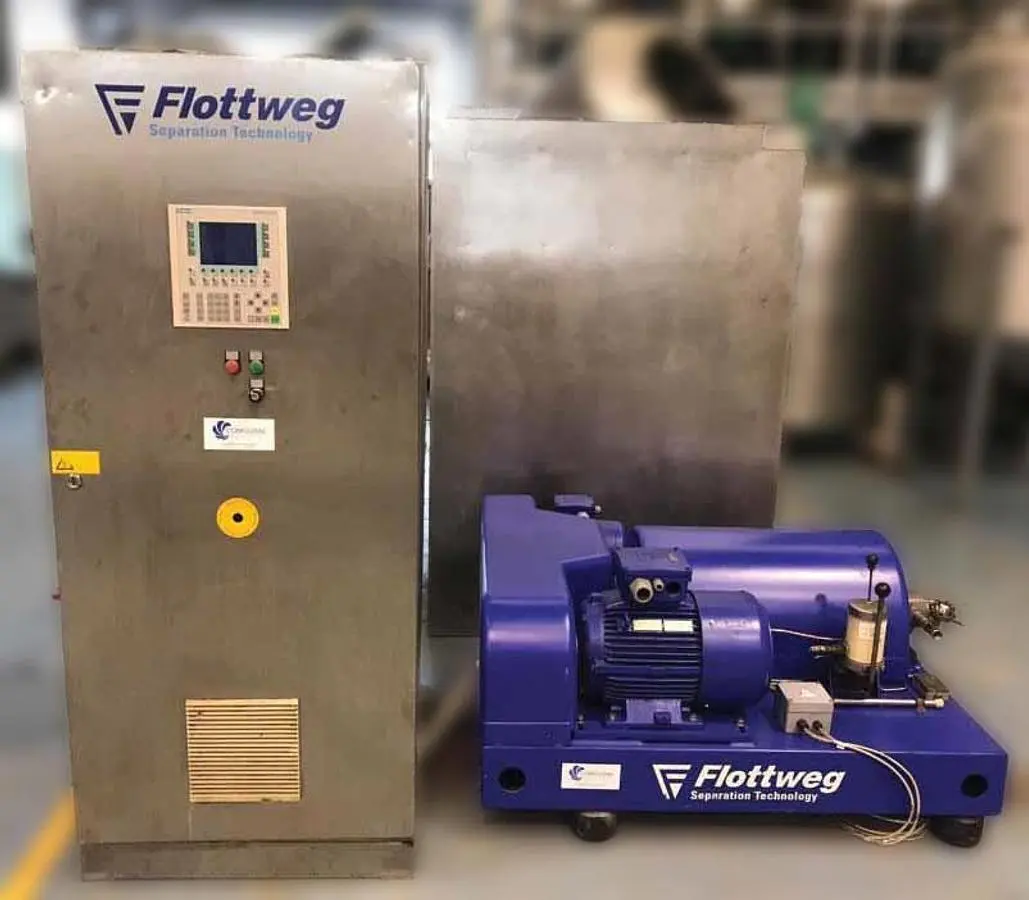

Siemens control panel with digital display
Control buttons (red stop, green start, key switch)
Stainless steel mounting frame with legs
Process piping connections
Electrical conduit connections
Control Features:
Siemens digital control panel
LCD display screen
Red emergency stop button
Green start button
Key switch selector
Control interface panel
Flottweg Separation Technology branding
Complete electrical controls
Safety Features:
CE certified design
Emergency stop functionality
Enclosed operating components
Temperature limitations (0-100°C)
Maximum pressure specifications
Key Specifications
Condition: Used - 2004 Build
Brand: Flottweg
Model: Z23-3/441 Solid Bowl Tricanter
Serial Number: 062.428.09
Year Built: 2004
Equipment Type: Industrial Three-Phase Solid Bowl Tricanter Centrifuge
Operating Specifications:
Maximum Bowl Speed: 6000 RPM (min⁻¹)
Maximum Sediment Density: 2.4 kg/dm³
Operating Temperature Range: 0°C to 100°C
Separation Capability: Three-phase (two liquids + solids)
Main Drive Motor: 11 kW
Back Drive Motor: 2 kW
Physical Dimensions:
Overall Machine Dimensions: 700mm (H) x 1300mm (W) x 1500mm (D)
Control Panel Dimensions: 2000mm (H) x 410mm (W) x 800mm (D)
Construction Materials:
Product Contact Areas: Stainless steel
External Housing: Blue painted steel
Support Frame: Stainless steel
Mechanical Components:
Gearbox: Included
Adjustable Skimmer Assembly: Included
Grease Pump: Included
Base and Casing: Complete
Electrical Specifications:
Main Drive Motor: 11 kW
Back Drive Motor: 2 kW
Control System: Siemens digital controller
Control Panel: LCD display with pushbutton controls
Emergency Stop: Red button
Ideal Applications
Oil and Gas Processing (three-phase separation)
Biodiesel Production
Vegetable Oil Processing
Fish Oil and Marine Oil Processing
Wastewater Treatment (oil/water/solids)
Food Processing (oil/water/solids separation)
Chemical Processing
Pharmaceutical Manufacturing
Rendering Operations
Industrial Sludge Processing with Oil Recovery
Slaughterhouse Waste Processing
Fat and Grease Recovery
Benefits
2004 German manufacture
Three-phase separation capability
Solid bowl design
Stainless steel product contact areas
6000 RPM maximum speed
11 kW main drive motor
2 kW back drive motor
Adjustable skimmer assembly
Complete gearbox and grease pump
Continuous operation design
Siemens control system
CE certified equipment
Stainless steel frame
Proven Flottweg technology
Industrial-grade construction
Temperature range 0-100°C
Compact footprint
Ready for installation
Additional Information
Condition: Used - 2004 Manufacture
Manufacturer: Flottweg GmbH & Co. KGaA
Location: Vilsbiburg, Germany
Model: Z23-3/441 Solid Bowl Tricanter
Serial Number: 062.428.09
Year Built: 2004
Separation Type: Three-phase (two liquids + one solid)
Bowl Type: Solid bowl
Max Bowl Speed: 6000 RPM (min⁻¹)
Max Sediment Density: 2.4 kg/dm³
Temperature Range: 0°C to 100°C
Main Drive Motor: 11 kW
Back Drive Motor: 2 kW
Overall Dimensions: 700mm (H) x 1300mm (W) x 1500mm (D)
Panel Dimensions: 2000mm (H) x 410mm (W) x 800mm (D)
Product Contact Material: Stainless steel
Configuration: Horizontal tricanter centrifuge
Includes: Base, casing, adjustable skimmer assembly, gearbox, grease pump
Control System: Siemens digital panel
Finish: Blue painted steel (external)
Frame: Stainless steel with adjustable legs
Certification: CE marked
Made In: Germany
* Brand: Flottweg
* Model: Z23-3/441 Solid Bowl Tricanter
* Year Built: 2004
* Max. Bowl Speed: 6000 RPM (min⁻¹)
* Serial Number: 062.428.09
* Condition: Used - 2004 Build
* Bowl Type: Solid bowl
