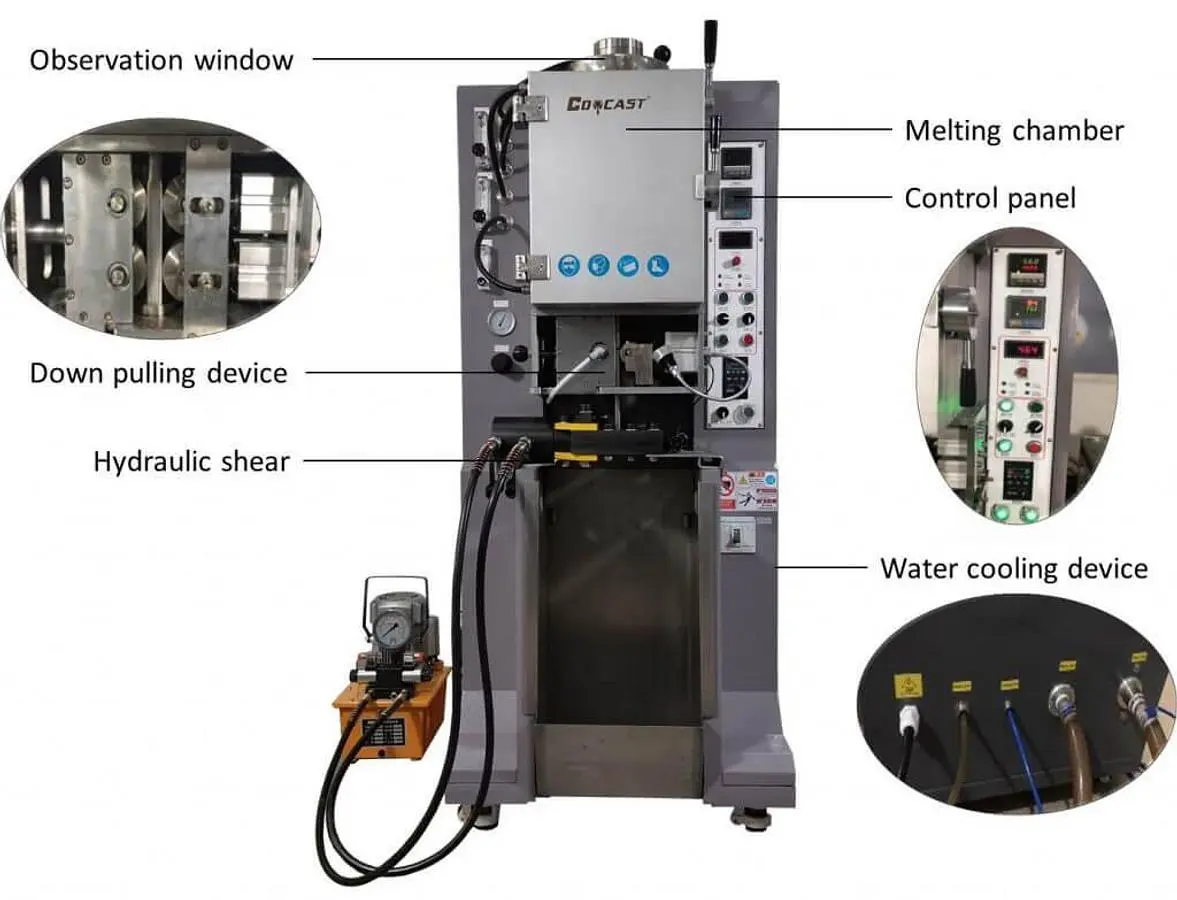

Jewelry Continuous Casting Machine Adopts intermediate frequency induction heating technology, with the advantage of high power and fast melting, and the highest temperature can reach 1300°C. It has strong intermediate frequency stirring force, which can lead to a high degree of uniformity of the metal, which is especially helpful for the casting of gold, silver and copper alloys.
Equipped with independent temperature control to continuously monitor the temperature during the entire draw process.
Comes with the built-in continuous temperature measurement system, easy to monitor the state of metal lead casting, which leads to the best density and quality of the final product.
Design With the ability to work 24 hours per day, this function ensures maximum productivity to meet the high production demands of some customers.
Power traction casting can realize drawing pipes, drawing rods, drawing sheets, and drawing strip pipes, which has the characteristics of high speed and high density of finished products. It has the unique magnetic stirring induction heating function to make the metal smelt more uniform and increase the casting speed.
Special device is designed in the Pulling for automatic detection of slippage phenomena between the roller and the semi-finished product.
If a rapid cooling process is required, a water spray system can be installed to cool the semi-finished product directly.
Each continuous casting machine is equipped with advanced hydraulic shears for easy cutting of semi-finished products.
Abnormal alarm system, it will automatically stop when an abnormality occurs, so as to protect the machine to the greatest extent and prevent damage to the machine.
Different capacities can be customized, down-draw casting, effectively reduce the sand hole of the workpiece, and meet the requirements of deep processing.
Voltage: 380v-420v, 50/60Hz
Power: 45Kw
Suitable Metal: Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting Time: 10-12 Mins
Casting speed: 10-20cm per minute
Casting Capacity: 30Kg Silver
Gas: Argon Gas or Nitrogen
Maximum temperature: 1600 Degrees C
