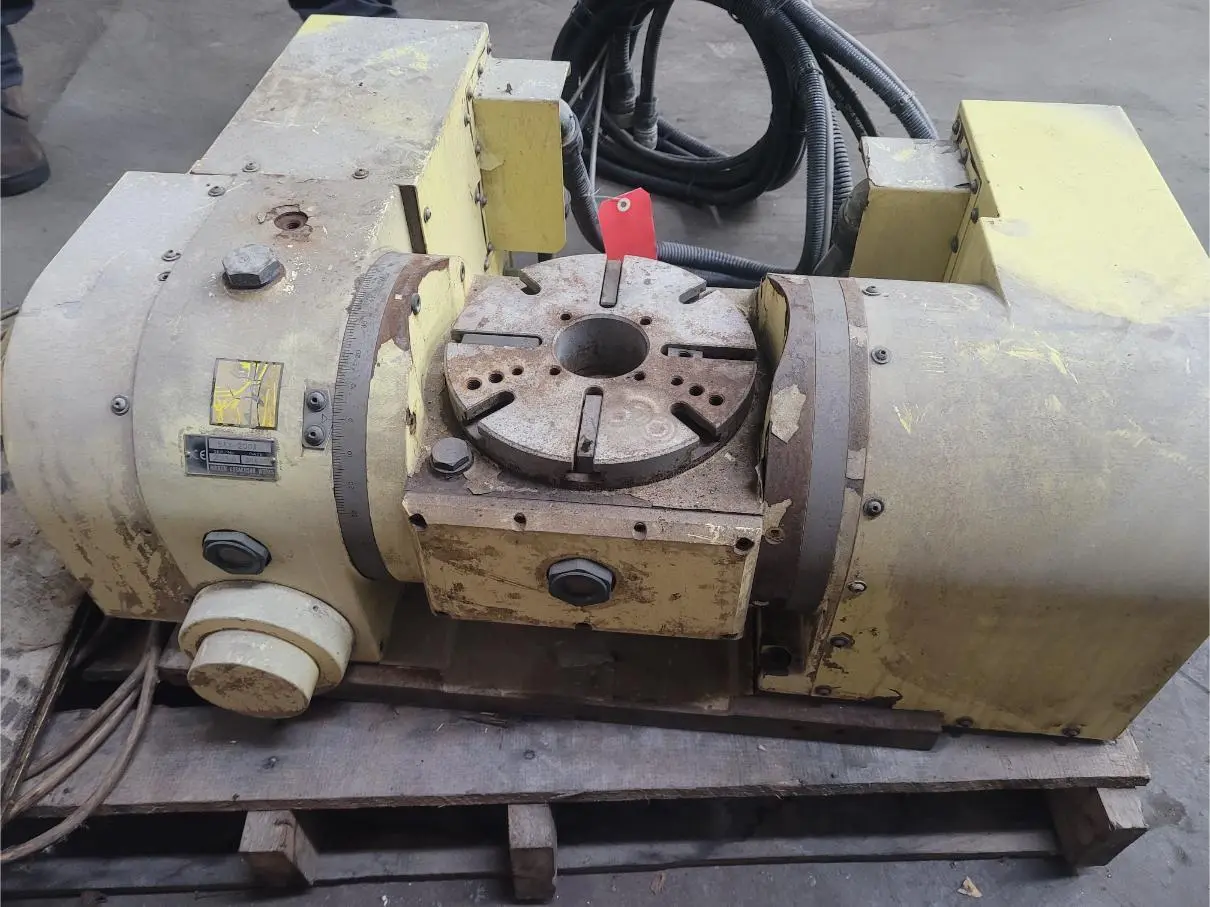

USED 2014 NIKKEN 5AX-200II

5th-Axis High-Precision Rotary Table
Make: Nikken Kosakusho Works (Japan)
Model: 5AX-200II
DOM: 10 / 2014

Features & Specifications:
...5-Axis: Rotary & Tilt
...Faceplate: 7.87"
...Tilting Angle: 90°
...Center Height: 7" @ 90° Tilt
...Table Height (approx.): 10.2"
...Spindle Hole: 2"
...Repeatability:
......Rotation (C): 4 arc-sec (0.001111°)
......Tilting (A): 6 arc-sec (0.001667°)
...Accuracy:
......Rotation (C): +/- 10 Seconds
......Tilting (A): +/- 15 Seconds
...Hydraulic Clamping
...Carbide Worm System
...High Precision, Dual-Axis
...Exceptional Rigidity, Fast Speeds

Overall Dimensions (approx.): 30" x 22" x 12"
Unit Weight (approx.): 500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

The original owner purchased this table new and installed on their CNC milling center. They never used and it remained on machine. The table was taken off sometime within the last year and stored on a skid. Was told that dirt accumulated while mounted on machine but unit is NEW, NEVER USED.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is not connected; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide delivery options.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
