NEW JET EDGE HERO 50

JET EDGE (NEW) MODEL HERO 50
UHP WATERJET PUMP W/ SMART CONTROL

- 1.1 GPM FLOW RATE
- SINGLE INTENSIFIER PACKAGE
- 20:1 INTENSIFICATION RATIO
- AXIAL PISTON, VARIABLE DISPLACEMENT, PRESSURE
COMPENSATED HYDRAULIC PUMP
- HYDRAULIC ACCUMULATOR DAMPENS PULSATIONS
- HYDRAULIC FILTRATION TO 10 MICRON

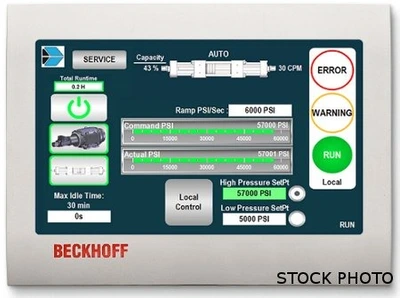

- WINDOWS BASED PC CONTROL
- ADJUSTABLE PRESSURE SET POINTS
HERO 50 MANUAL PRESSURE ADJUST
- CONFIGURES OPERATING PARAMETERS
- PROVIDES ONLINE DIAGNOSTICS
- OPERATES THE ELECTRONIC TIMING OF INTENSIFIER
- 50 HP HIGH EFFICIENCY TEFC MOTOR
HERO 50 WYE DELTA MOTOR STARTER ASSEMBLY
- SAFETY SHUTDOWN SYSTEMS
- AUTOMATIC SAFETY PRESSURE BLEED-DOWN VALVE
- INTEGRATED POWER DISTRIBUTOR PANEL W/ DISCONNECT
- NEMA 12/13 RATED ELECTRICAL ENCLOSURE
- UL CERTIFIED ELECTRICAL PANEL
- RUGGED ALL STEEL WELDED FRAMEWORK
- HEAVY GAUGE SHEET METAL COVERS
- HINGED COVER AND REMOVABLE PANELS
- WATER PREFILTER TO 0.45 MICRON
- THERMOSTATICALLY CONTROLLED KIDNEY LOOP COOLING
SYSTEM TO REDUCE WATER USAGE
- BRAZED PLATE HEAT EXCHANGER
- 1 QUART HIGH PRESSURE ATTENUATOR TO DAMPEN
PRESSURE FLUCTUATIONS CERTIFIED PRESSURE VESSEL
DESIGN
- HERO 50 JET SMART CONTROL PACKAGE
- SINGLE INTERNAL WATER COLLECTOR
- MANUAL PRESSURE HYDRAULIC PRESSURE COMPENSATOR
- BOOST PUMP KIT, 60-50

JET START 510A 2D MOTION SYSTEM
- AQUAVISION DI SINGLE CARRIAGE CNC W/ WINDOWS 10
- SWIVEL ARM CONTROL MOUNT
- JET START 510A 2D Z PACKAGE 12,0,0,1A
- BLOWER FAN ASSEMBLY - CROSS BEAM
- XY MOTION 5' X 10'
- CLOSED LOOP DRIVE SYSTEM ON X AND Y AXIS
- AC DIGITAL BRUSHLESS SERVO MOTORS, ABSOLUTE
ENCODER, SERCOS COMMUNICATION PLATFORM
- PRELOADED ANTI BACKLASH RECIRCULATING
BALL SCREWS
- LINEAR BEARINGS WITH HARDENED AND PRECISION
GROUND BEDWAYS
- SPLIT Y-AXIS DRIVE SYSTEM (DUAL MOTORS)
- 300 IPM CONTOURING; 500 IPM RAPID POSITIONING
FULL FEATURED MACHINE OPERATORS PANEL:
- VARIABLE FEED-RATE OVERRIDE
- INDIVIDUALLY CONTROLLED WATER AND
ABRASIVE FUNCTIONS
- AUTO, MDI, AND MANUAL OPERATION
- FULL FEATURED HANDHELD PENDANT
- 0.005 RENISHAW BALLBAR DYNAMIC POSITIONING
ACCURACY - CIRCULARITY (OVER 24") AT 70F OVER
ENTIRE WORK ENVELOPE
+/- 0.003" RENISHAW BALLBAR TESTS OF SQUARENESS
AND STRAIGTNESS (OVER 24") AT 70F
+/- 0.001" LINEAR POSITIONAL ACCURACY (OVER 12")
+/- 0.001" REPEATABILITY (BI-DIRECTIONAL)
- HIGH PRESSURE WHIP DELIVERY SYSTEM W/ HAND VALVE
- MACHINE WAY PROTECTION ON ALL AXIS

- JET START 510A CATCH TANK
W/ ADJUSTABLE SLAT KIT
- TOOL KIT FOR 60K 20:1 INTENSIFIER
- SPARE PARTS START-UP KIT ABRASIVE CUTTING ONLY
- SPARE PARTS START-UP KIT FOR HERO 50
- ABRASIVE HOPPER- BASIC SOLID HOPPER
(800 LB, 6.5 CU. FT.)
- IGEMS ANNUAL SUBCRIPTION LICENSE
- INSTALLATION AND TRAINING- COMPLETE SYSTEM
Power: 460 (3-Phase)
