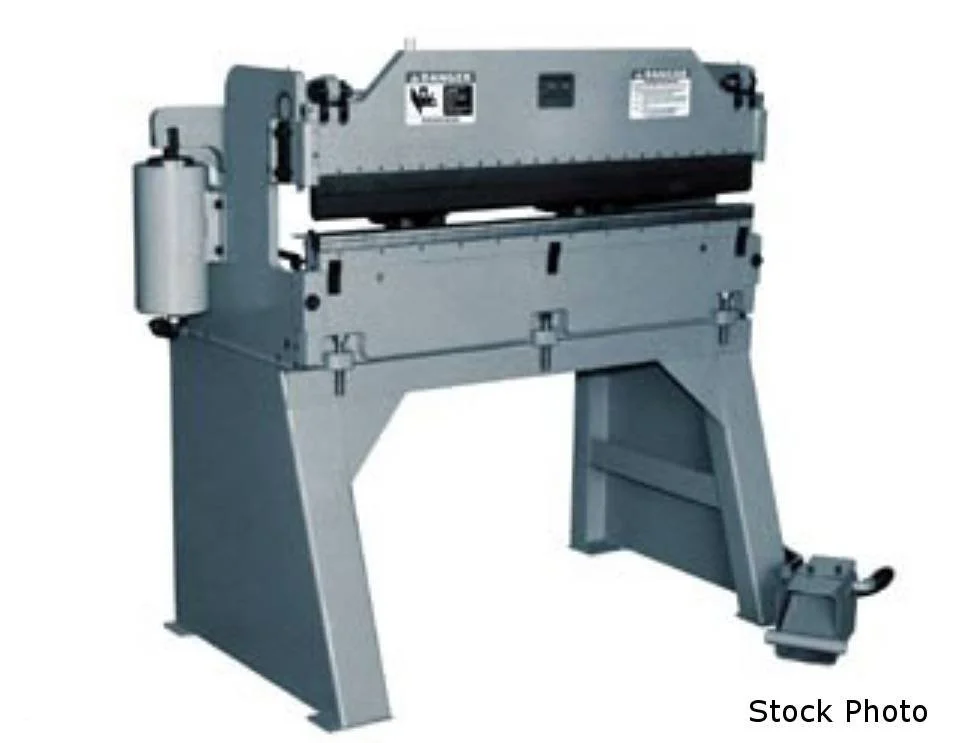

NEW ATEK BANTAM B412

ATEK BANTAM (NEW) MODEL B412 PRESS BRAKE

12 TON CAPACITY @ 90 PSI
4' BED WIDTH
9-7/8" RAM HEIGHT
8-7/8" TOOLING SPACE
0 TO 1-7/8" RAM STROKE
0 TO 2" BED ADJUSTMENT UP
5-3/4" X 7-1/2" WINDOW
2.2 CFM/STROKE
30 SPM MAXIMUM SPEED AT FULL STROKE

EQUIPPED WITH
- FILTER/REGULATOR/LUBRICATOR WITH ON/OFF VALVE
- SAFETY HOODED FOOT VALVE WITH TOP FLIP COVER
- RAM SPEED CONTROL VALVE
- REAR ADJUSTABLE RAM STROKE CONTROL
- REAR ADJUSTABLE MANUAL BACKGAUGE
- ADJUSTABLE DIE HOLDER
- STEEL 90 DEGREE TOP PUNCH
- 3/4" VEE DIE

OPTIONS AVAILABLE - PRICE ON REQUEST
- FRONT ADJUST Y-AXIS RAM STROKE CONTROL WITH DRO
- 0-4" REAR ADJUST MICROMETER BACKGAUGE
- 0-18" FRONT ADJUST BALL SCREW BACKGAUGE W/DRO
- 0-12" CNC BACKGAUGE
- PRODUCTION PARTS COUNTER
- FRONT WORKPIECE SUPPORT TABLE WITH
2-HAND SAFETY CONTROL
- SEGMENTED CLAMP RAM FOR SAFETY TANG TOOLING
- SMART-GAGE CNC BACKGAUGE
- ATEK BANTAM PRESS BRAKE TOOLING
