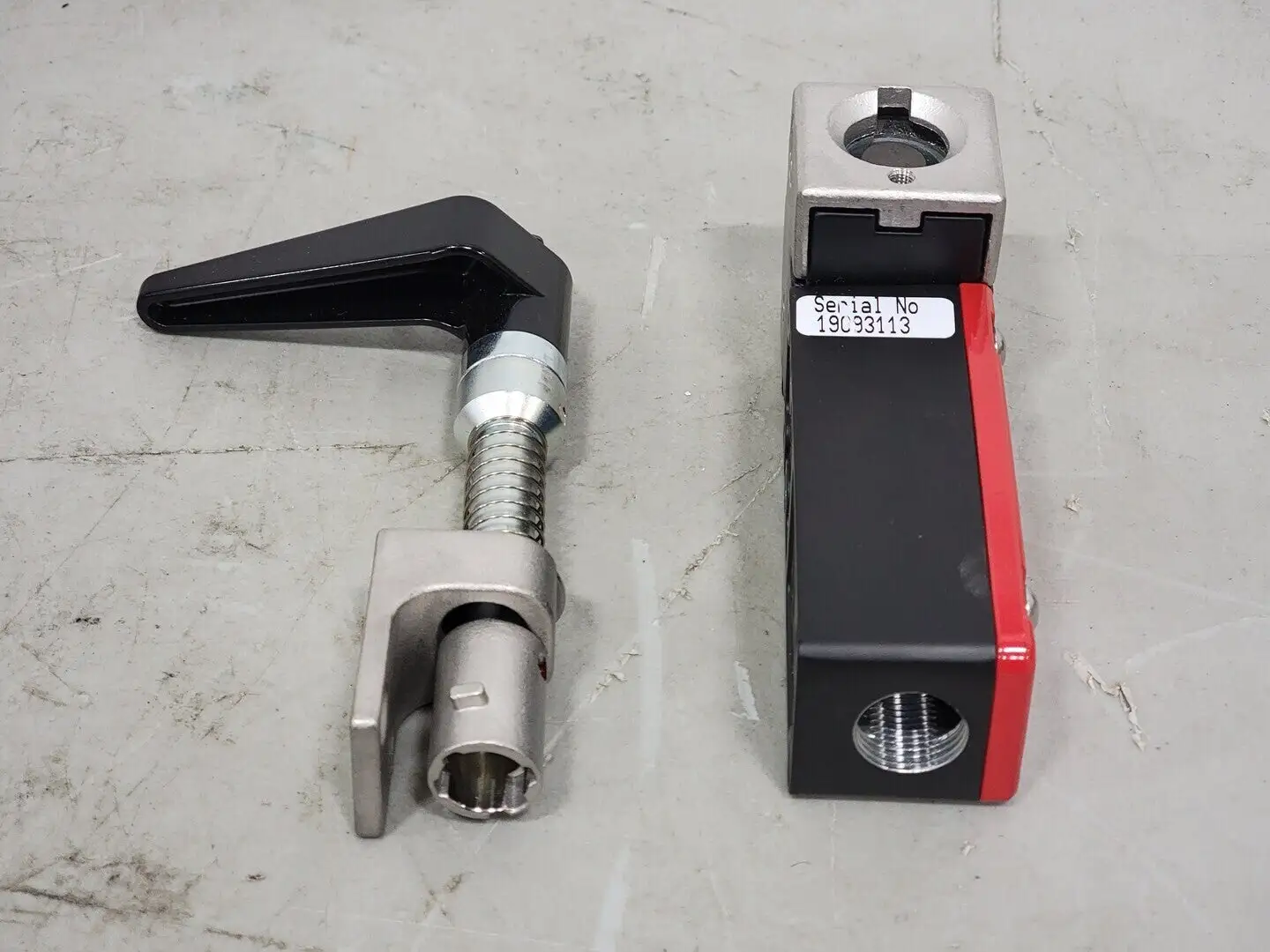

NEW FORTRESS INTERLOCKS MA2M6ST401

Housing Materials: Zinc Alloy to BSEN12844
Paint Finishes: Gloss Powder Coat on Passivated Base Material
Ingress Protection: IP67
Mechanical Life: >1,000,000 Switching Cycles
Ambient Temperature: -5°C to + 60°C (23°F to 140°F)
Maximum Frequency of Ops: 7,200 per hour
Connector Type: Spring Activated Vibration Proof Block
Switching Contact Element: 2NC and 1NO
Safety Circuit Switching Principal: Positive Break (2N/C) Dual Channel
Maximum Switch Current: 3A
Minimum Switch Current: 1mA at 5VDC
Maxiumum Switching Voltage: 230V AC Max
Utilisation Category: AC 15 or DC 13
Control Voltages: 24V ac/dc, 110V ac, 230V ac
Insulating Voltage: 2500V AC
Insulatiing Resistance: 20M Ohm
Cable Size: 28 - 24 AWG
