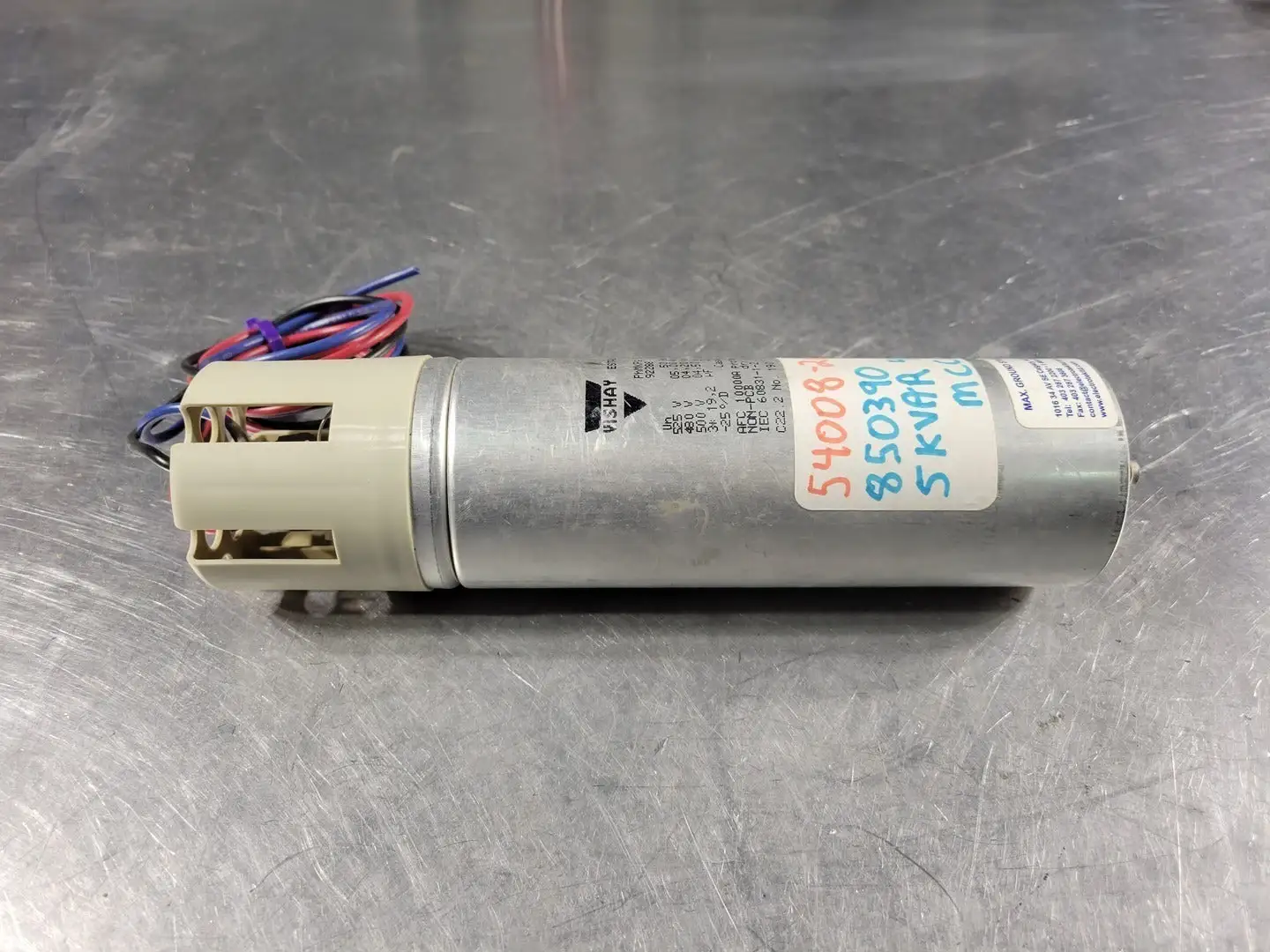

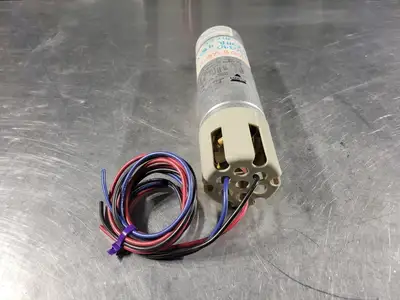

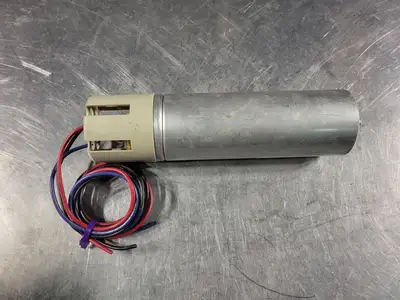

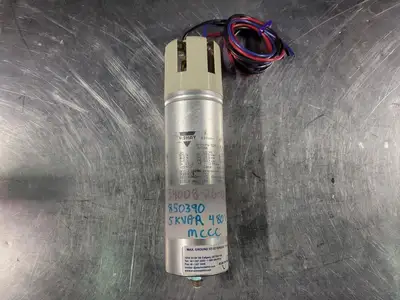

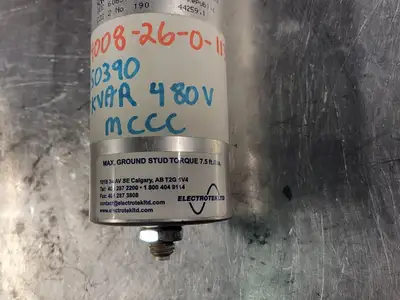

USED VISHAY PHMKPG 525.3

Series: PhMKPg, Cylindrical
Description: LVAC power capacitors-dry- INDOOR, IP20
Type: Capacitors, fixed, low voltage
Technology: MKP, metallized polypropylene film
Voltage max. (V): 1000
Capacitance min.: 3-phase D: 3 x 11.5 uf, 3-phase Y : 3 x 83.6 uf
Capacitance max.: 3-phase D:3 x 11.5 uf, 3-phase Y : 3 x 219.3 uf
Output min. (kvar): 2
Output max. (kvar): 37.1
Output at 525V: 5.00 kvar @ 50hz, 6.00 kvar @ 60hz
Output at 480V: 4.20 kvar @ 50hz, 5.00 kvar @ 60hz
Output at 500V: 4.50 kvar @ 50hz, 5.40 kvar @ 60hz
