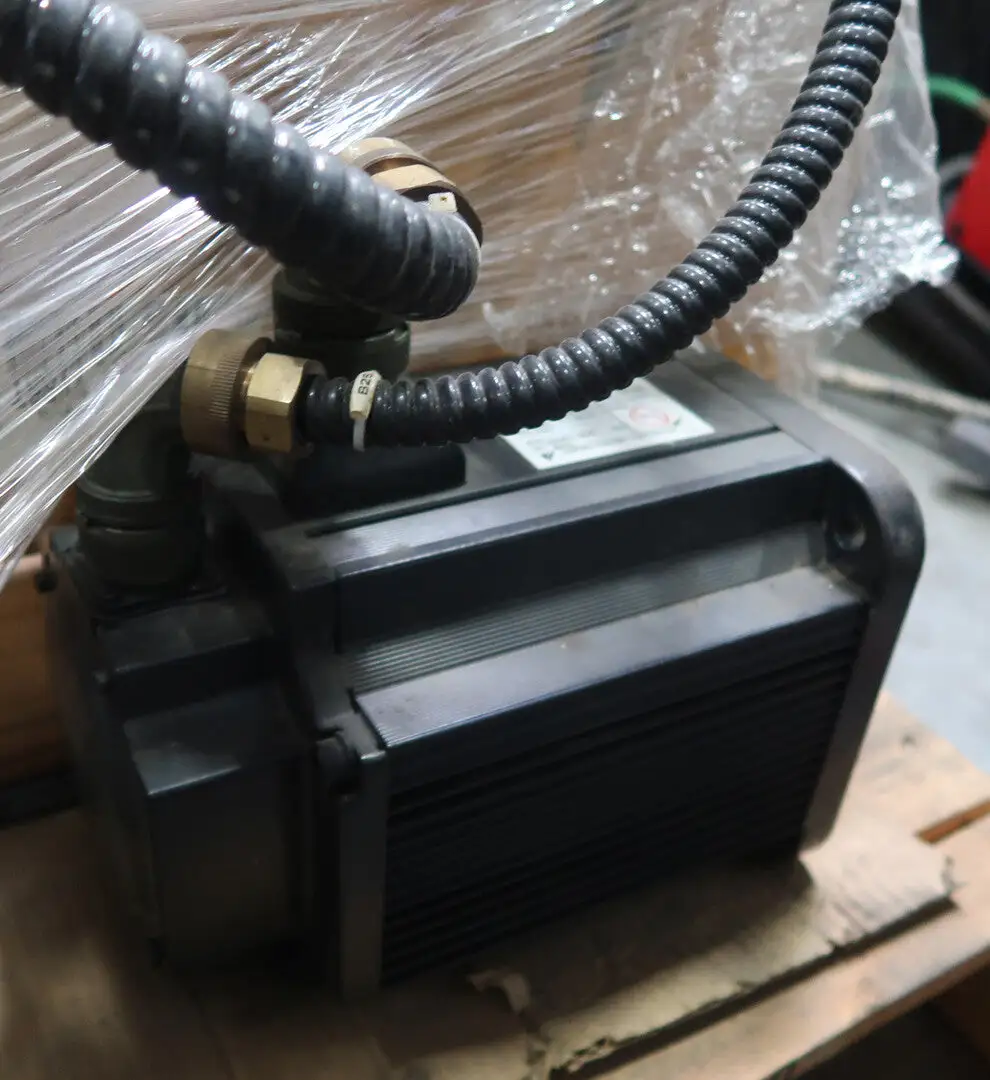

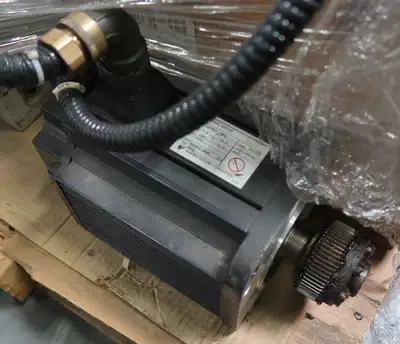

NEW YASKAWA USAMED-12BA2

Amps: 11.7 amps
Time Rating: Continuous
Insulation: Class F
Isolation Voltage: 1500 VAC, one minute
Insulation Resistance: 500 VDC, 10m ohm or more
Enclosure: Totally-enclosed, self-cooled (Equivalent to IP-55 exclusive shaft opening)
Ambient Temperature: 0 to +40 deg. C
Ambient Humidity: 20% to 80% ( non-condensing)
Vibration: 15 um or below
Finish in Munsell Notation: N1.5
Excitation: Permanent Magnet
Mounting: Flange Mounted
Drive Method: Direct Drive
Rated Output: 1.2 kW (1.6 hp)
Rated Torque: 11.5 N.m (102 lb. in)
Continuous Max Torque: 11.8 N.m (104 lb.in)
Instantaneous Max Torque: 28.0 N.m (248 lb.in)
Rated Current: 11.7 A
Rated Speed: 1000 r/min
Instantaneous Max Speed: 2000 r/min
Torque Constant: 1.02 N.m/A (9.0 lb. in/A)
Power Rate: 19.7 kW/s
Inertia Time Constant: 6.9 ms
Inductive Time Constant: 10.4 ms
