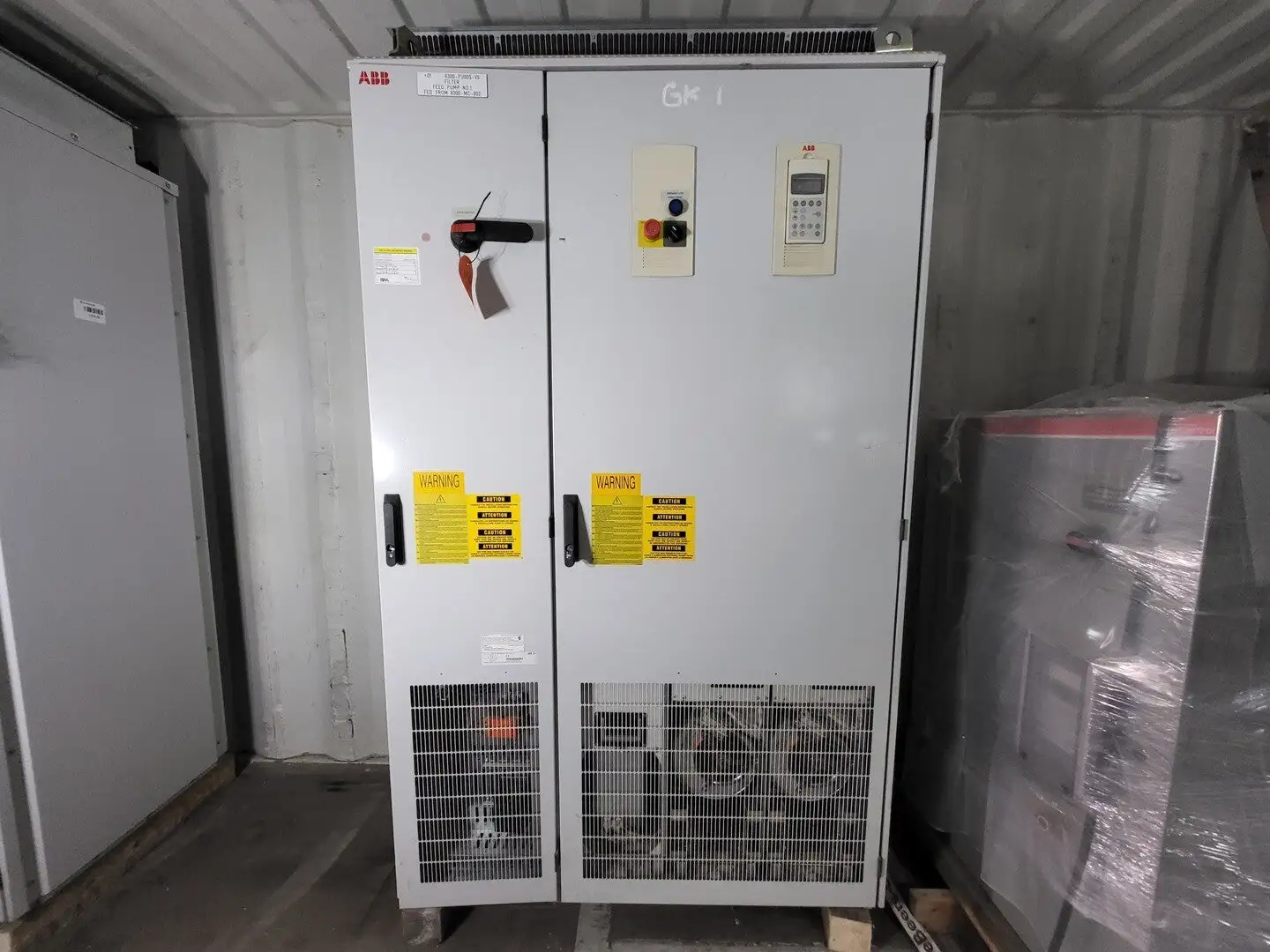

USED ABB ACS800-37-0260-7

Horsepower: 200 hp
Voltage: 600 volts
Phase: 3-phase
Amps: 180 amps
Addition Options: A013+C134+H351+H353+K454+L504+P902+Q951+R700
Model + Options: ACS800-37-0260-7+A013+C134+H351+H353+K454+L504+P902+Q951+R700
NEMA Rating w/ 60hz Supply:
Amps (I 1N): 180A
Amps (I max): 301A
Power (Continuous Max.): 200HP
Power (Normal-duty): 200HP
Power (Heavy-duty): 150HP
Heat Dissipation: 11kW
Air Flow: 1860ft3/min
Noise Level: 75dBA
Frame: R8i
Unit Components:

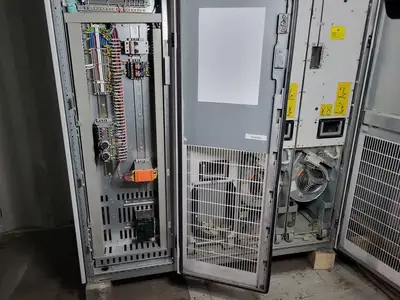

Swing-out frame for control circuitry and additional attachments
Supply unit controller (RDCU)
Inverter unit controller (RDCU)

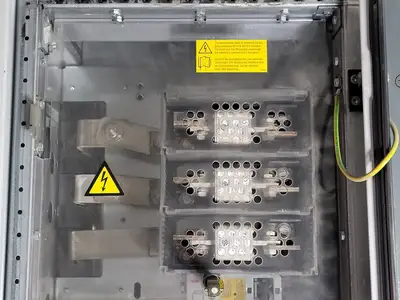

Switch-disconnector
Input contactor
LCL filter

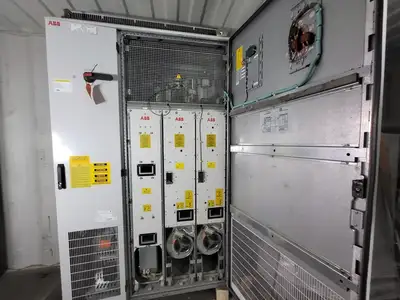

IGBT supply module
Intermediate DC link
Inverter module

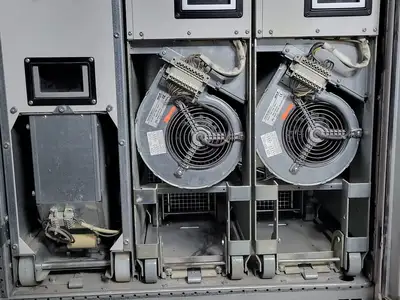

Cooling fan for LCL filter
Cooling fan for IGBT supply module
Cooling fan for inverter module
Auxiliary voltage transformer
Auxiliary voltage circuitry and relays
