Experience this new automated MIG welder with a 61" reach!
The 7-Axis Blaze Welding cobot features an unlimited library of welding recipes, Zero Programming, drag and drop tablet controller, and complete control and customization of welding parameters, weld recipes, weld types and automation of Miller weld presets.
No programming required!
| # Axis | 7 | 7 |
| Horizontal Reach | 61" | 1,549.4 mm |
| Reach | 61" | 61" |
| Repeatability | +/- 0.1mm ~ .004" | +/- 0.1mm ~ .004" |
| Speed | 0-2+ m/s | 0-2+ m/s |
| IP Class | 61 | 61 |
| Joint Ranges | +/- 360 Degrees (all) | +/- 360 Degrees (all) |
| Programming | No Programming Learns by Demonstration | No Programming Learns by Demonstration |
| Safety | ISO 10218-1 Compliant ; Power and force limited | ISO 10218-1 Compliant ; Power and force limited |
| Robot Mounting Flange Diameter | 220 mm: OB7 | 220 mm: OB7 |
| Gripper Mounting Flange: | ISO 9409-1-50-4-M6 | ISO 9409-1-50-4-M6 |
| Working Temperature: | 0-37 Celsius 32-100 Fahrenheit | 0-37 Celsius 32-100 Fahrenheit |
| Power Source | 100 - 240 VAC 50-60hz | 100 - 240 VAC 50-60hz |
| Uninterruptible Power: | 10 minutes (robot stopped) for moving robot to new location | 10 minutes (robot stopped) for moving robot to new location |
| Power Consumption: | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload | OB7: 90-650 W OB7-Max: 90-1000W dependent on speed and payload |
| Linear Speed: | 2m/s max (Dependent on position) | 2m/s max (Dependent on position) |
| Table Height | 36 | 36 |
| Work Surface | 41.75"x 48" | 41.75"x 48" |
| Welder | Miller Auto Continuum 350 / 500 | Miller Auto Continuum 350 / 500 |

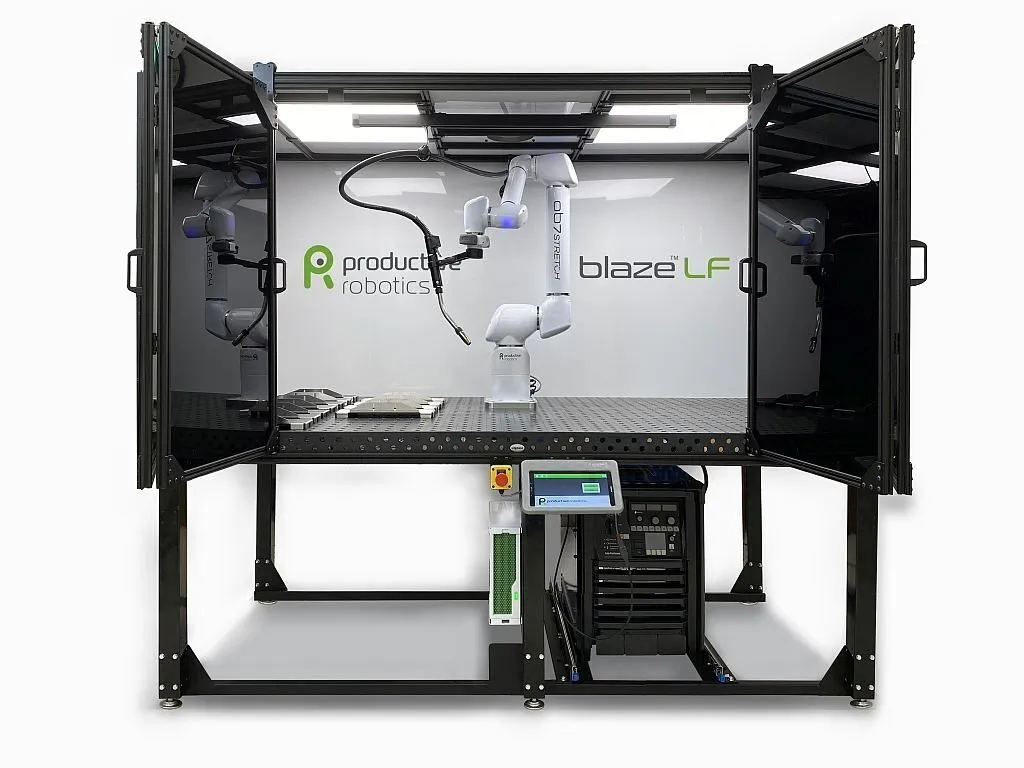

Blaze MIG Welding LF Package w/ Miller Auto Continuum 350/500
Includes:
Blaze Robot
Miller Auto Continuum 350 / 500
Miller Cobot Kit
Miller Wire Feeder
Miller Startup Kit
Blaze Welding Software
4' x 8' Siegmund Table
Sealed control computer
No Programming Teach Tablet
Dimensions
Overall:
Table Height: 914 mm (36”)
Work Surface: 1060 mm x 1,244 mm (41.75” x 48”)
Wire Drive
Wire Feed Delivery Length: 10 ft. (3 m) Optional: 15 ft. (5 m)
LightWELD Interface: Low Voltage enable signal cable
Wire Feed Speed Range: 0.5 - 230 ipm (1 - 600 cm/min)
Compatible Wire Diameters: 0.030” – 0.063” (0.8 mm - 1.6 mm)
Wire Reel Capacity: Up to 30 lbs. (12” diameter)
Compatible Wire Materials:
Steel, Stainless Steel, Aluminum, Copper, Nickel
Power Requirements: 115 - 230V 50/60 Hz
Auto-Continuum™ 350 and 500
Advanced MIG processes:
Accu-Pulse® pulsed MIG (GMAW-P)
Versa-Pulse™
RMD®
MIG (GMAW)
High-deposition MIG (GMAW)
Flux-cored (FCAW)
Metal-Cored (GMAW-C)
Input Power: Auto-Line™ 230–575 V, 3-phase, 50/60 Hz
Rated Output at 104°F (40°C)
350: 350 A at 31.5 V, 100% duty cycle
500: 500 A at 39 V, 100% duty cycle
Output Range
350: 20–400 A, 10–44 V
500: 20–600 A, 10–44 V
General
Warranty: 3 years on Blaze Laser Cell, Blaze Cobot and Miller® Welders
ROBOTS:BLAZE MAX MIG
AUTO-CONTINUUM 350 LF PKG
