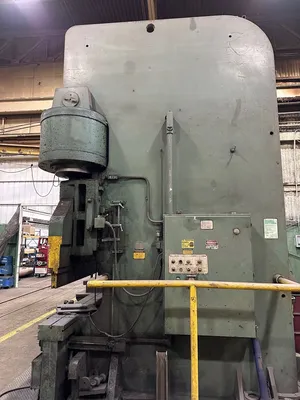

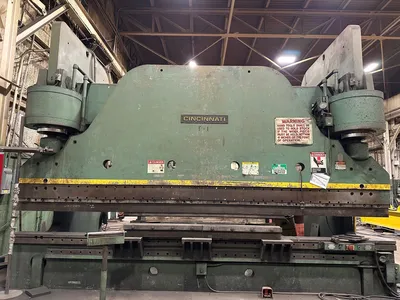

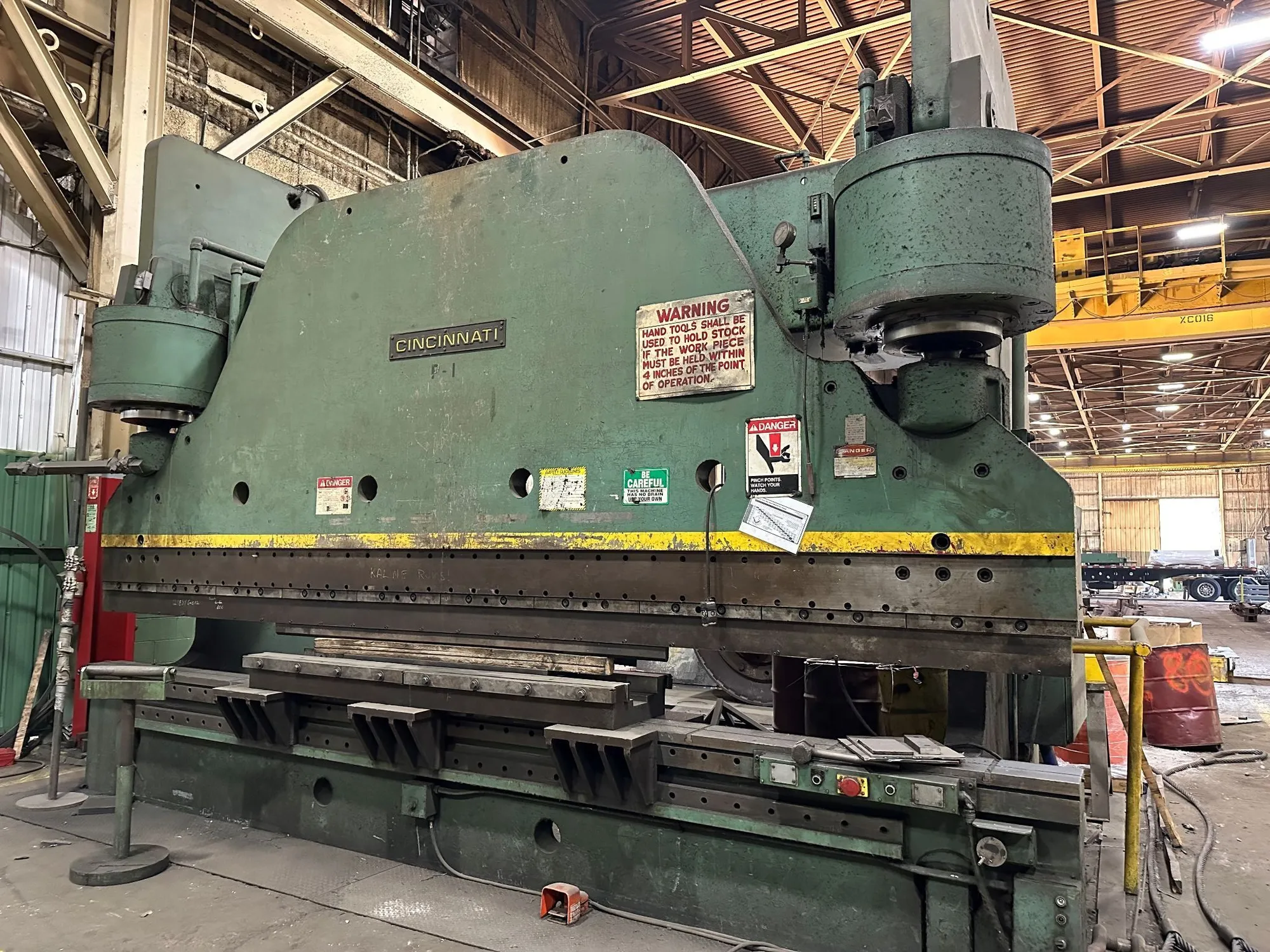

A Cincinnati 1000H Series Hydraulic Press Brake is a heavy-duty industrial machine designed for bending and shaping sheet metal, featuring a 1,000-ton bending capacity. These machines are characterized by a hydraulic power system that drives the ram, a standard 12-inch stroke, a fixed die space or open height for tooling, and a hydraulic system for precise tonnage control.
| Tonnage | 1,000 T | 907.186 t |
| Type | HYD | HYD |
| OA Length | 20' | 6.1 m |
| OA (Overall) Length | 240" | 6,096 mm |
| Between Housings | 16' | 4.9 m |
| Between Housings | 198" | 5,029.2 mm |
Specifications:
Capacity: 1000 TON
Bed Length: 20'
Distance Between Housings: 16'6"
Standard Stroke: 12"
Open Height: 22"
Closed Height: 10"
Rapid Advance: 85 IPM
Fast Press: 47 IPM
Full Tonnage Press: 20 IPM
Return Speed: 35 IPM
Fast Return: 65 IPM
Horsepower: 60 HP
