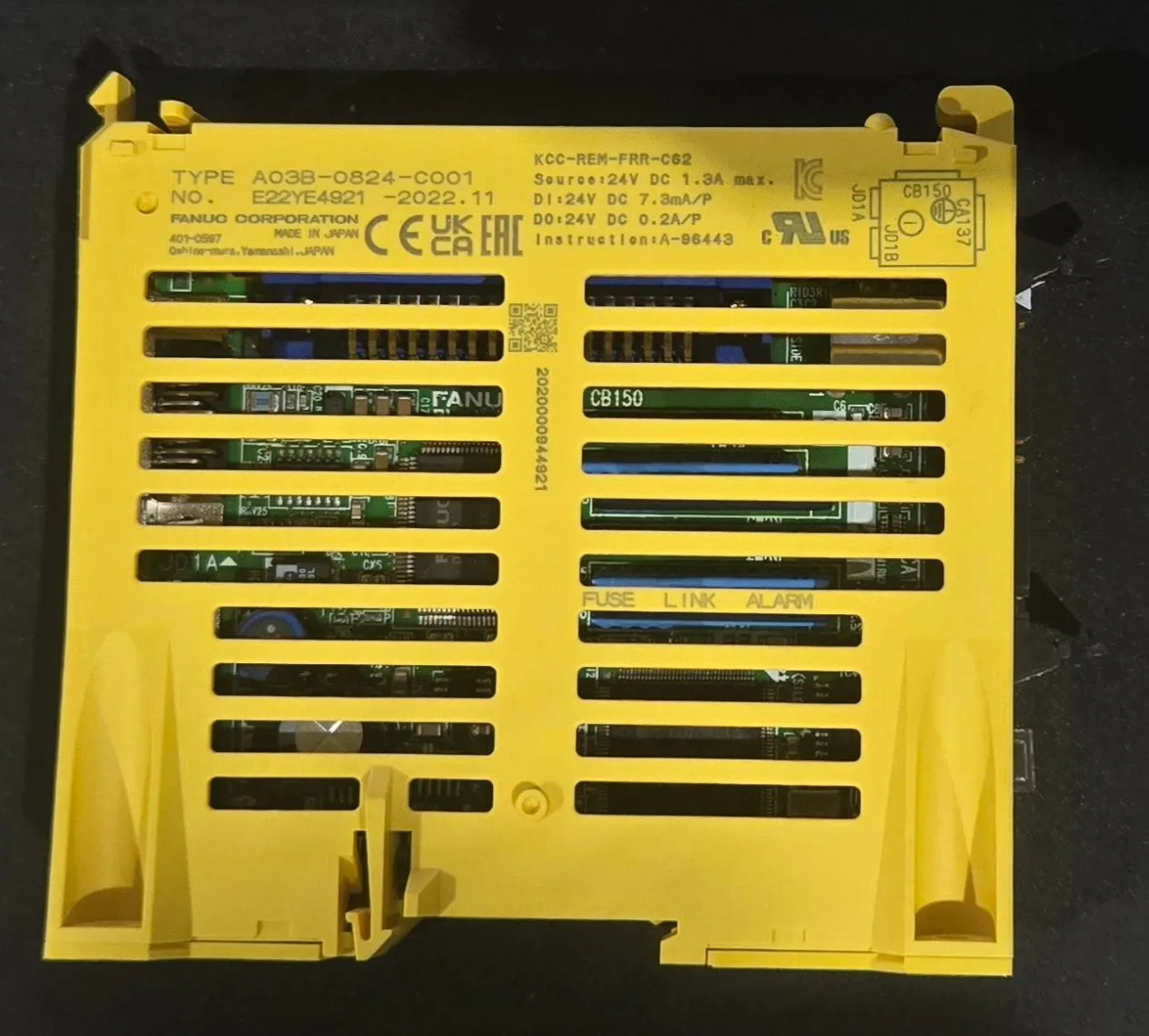

NEW 2022 FANUC A03B-0824-C001
Overview
Description
This listing is for a NEW FANUC A03B-0824-C001. It provides monitoring and protection of I/O circuits within FANUC control systems, supporting 24V DC digital input and output signal environments with integrated fuse, link, and alarm indication for industrial automation applications.
Specifications
| Dimensions | 5X2X5 | 5X2X5 |
|---|---|---|
| Weight | 1LBS | 1LBS |
Manufacturer: FANUC
Model/Series: A03B-0824 Series
Part Number: A03B-0824-C001
Condition: NEW
YOM: 2022
Module Type: I/O monitoring and protection module
Function: Monitoring and fault indication of digital I/O circuits
System Role: Diagnostic and protection layer within FANUC control systems
Mounting: Backplane / rack mount
Control Voltage: 24 V DC (DI / DO as marked)
Input Current (DI): 7.3 mA
Output Current (DO): 0.2 A
Indicators: Fuse, Link, Alarm
Interface: High-density multi-pin connector
Compatible Systems: FANUC control systems
