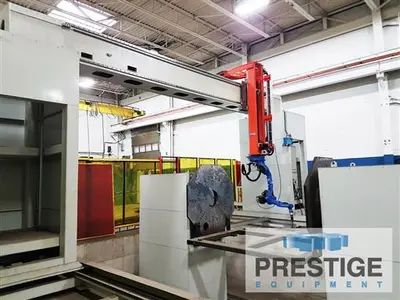

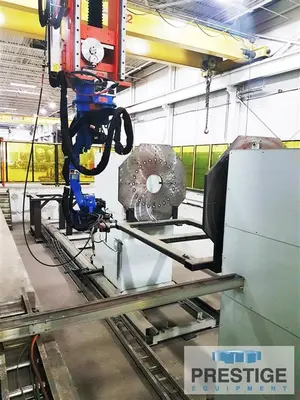

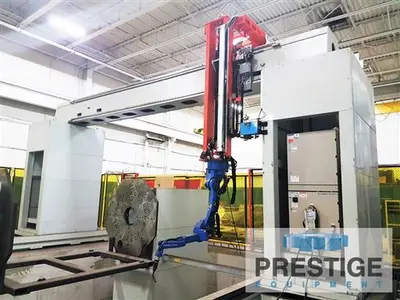

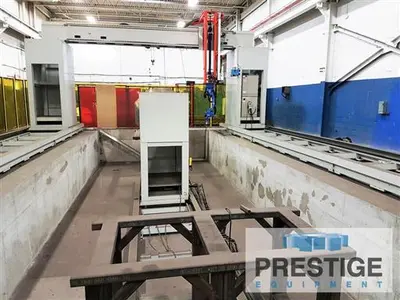

USED 2012 MOTOMAN GANTRY TYPE

Specifications:
Gantry Travel, X-Axis: 480"
Cross Travel, Y-Axis: 241"
Ram Stroke, Z-Axis: 72"
Headstock Diameter: 72"
Headstock Speed: 1 RPM
Tailstock Diameter: 72"
Tailstock Travel: 360"
Distance Between Headstock/Tailstock: 240" - 480"
Center of Rotation from Floor: 59" - 98"
Cell Footprint: 600" x 384"
Cell Max Height: 264"
Cell Min Height: 216"

Equipped With:
Motoman DX100 Controller for Robot, Gantry and Rotary Positioner
Motoman MA1900T 6 Axis Robot
Miller Auto-Axcess 675 Weld Controller
Binzel WH650 Water Cooled Torch
72" 60,000 lb Headstock/Tailstock Positioners
Rotary Positioner Torque Capacity: 30,000 lb-ft
Wire Mesh Guarding Fence with Arc Flash Curtains

Features:
Motoman DX100 Controller for Robot, Gantry and Rotary Positioner
Motoman MA1900T 6 Axis Robot
Miller Auto-Axcess 675 Weld Controller
Binzel WH650 Water Cooled Torch
72" 60,000 lb Headstock/Tailstock Positioners
Rotary Positioner Torque Capacity: 30,000 lb-ft
Wire Mesh Guarding Fence with Arc Flash Curtains
