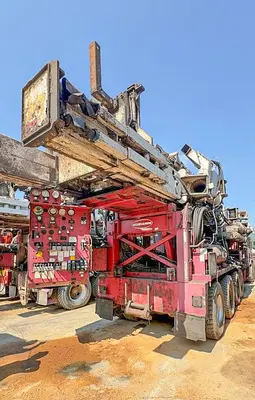

USED 2008 SCHRAMM T200XD DEEP WATER / OIL & GAS ENERGY DRILL RIG.

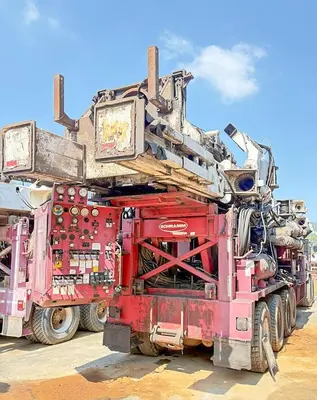

2008 Schramm T200XD Deep Water / Oil & Gas Energy Drill Rig.

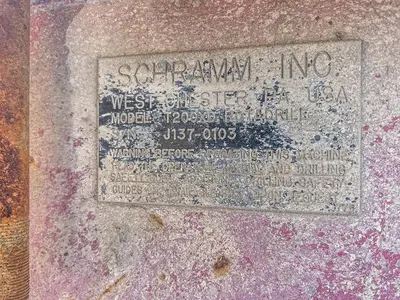

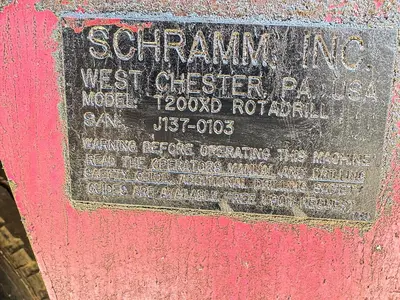

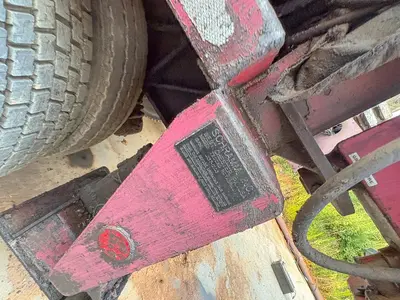

Serial Number: J137-0103

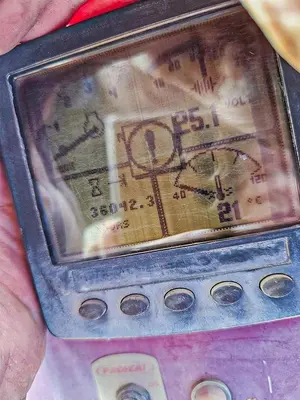

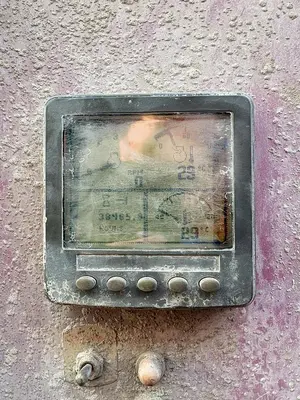

Hours: 36,043 hrs
Includes Original Schramm Iron Roughneck and Original Schramm LoadSafe® Pipe Handling System Mounted On Aspen Trailer.
Stacked Summer Of 2026
Up to 200,000 LBF ( 890 kN) Pullback
Range III Tubular Capability
Compact 50 ft (15.2 m) Transport Length
Precise Hydraulic Weight On Bit Control

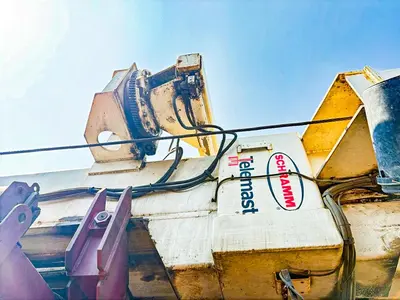

TELEMAST:
Telescoping Hydraulic Derrick For Easier Transportation While Maintaining Range 3 Casing Capabilities.
DECK ENGINE:
Detroit Diesel DDC/MTU 12V-2000TA DDEC
760 bhp (567 kw) @ 1800 rpm
2 X 110 Gallon (415 L) Fuel Tanks
Electric Start; We Have Videos Of Startup And Running In Early July 2026
COOLING:
Two Core, Side By Side Heat Exchanger With Variable Speed Cooling Fan
130°F (54°C) Ambient Design Temperature

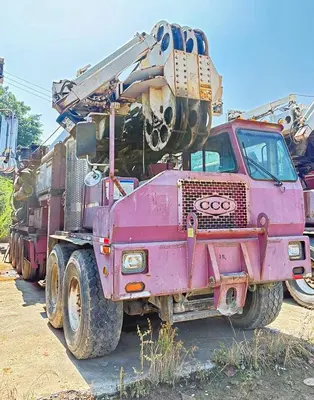

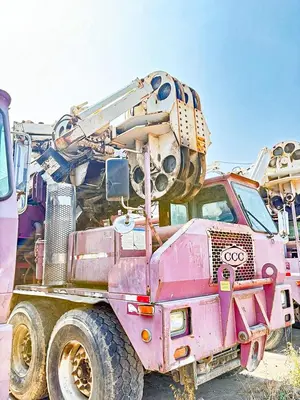

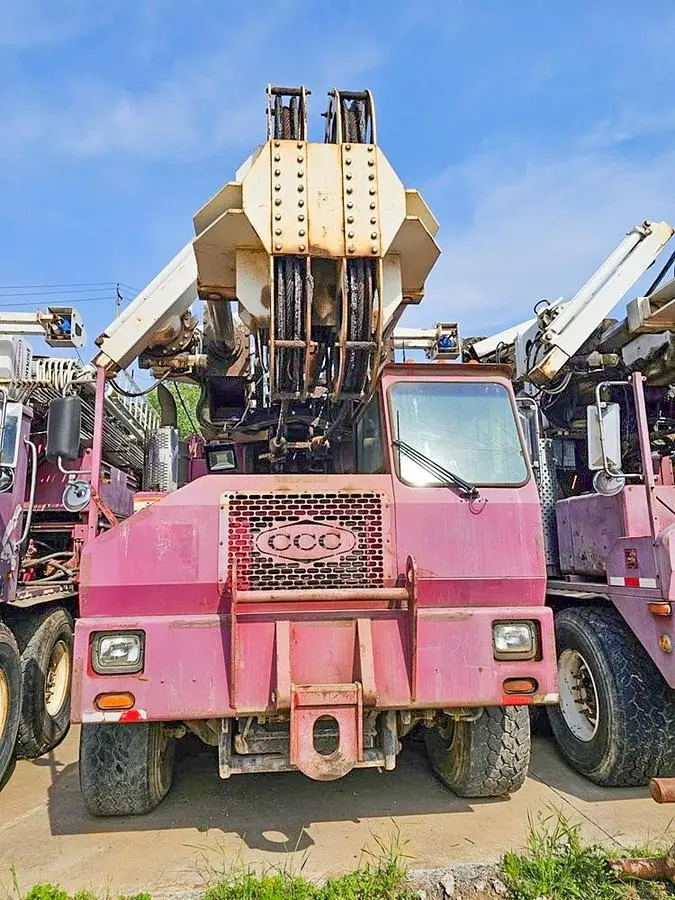

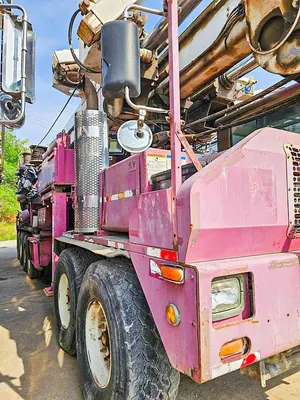

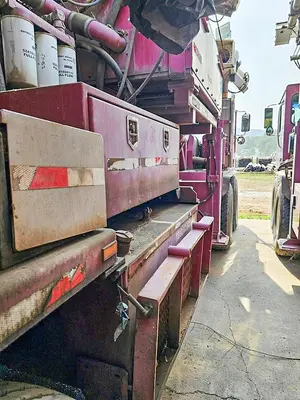

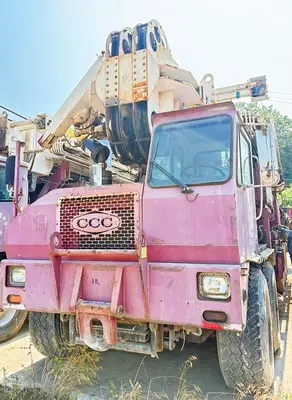

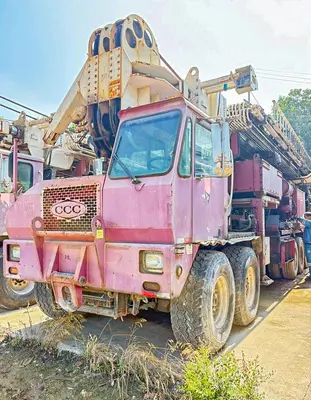

CARRIER:
CCC 12 x 6 Carrier
Wheel Base 25 Ft (7.6 M)
Cummins Engine Rated 420 Hp @ 1,900 Rpm
44,000 Lb (19,955 Kg) Front Axle
23,000 Lb (10,433 Kg) Pusher Axle
77,000 Lb (34,927 Kg) Rear Tridem
142,500 Lb (64,637 Kg) GVWR
CCC Truck VIN:
1CYDGV6808T048386

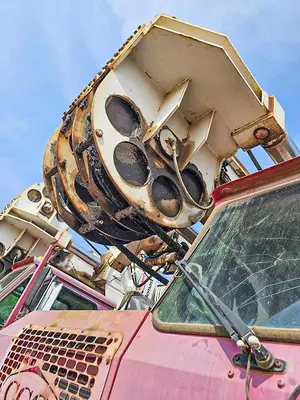

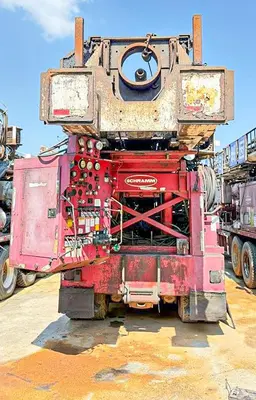

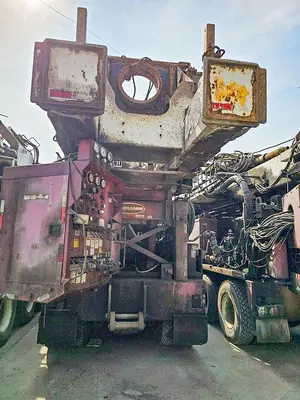

MAST:
Telescoping Mast Design Permits Long Head Travel And Working Height, Yet Short Overall Length In Transport Position
Free-Standing Mast Design
Hydraulically Operated Adjustable Mast Feet And Slip Box

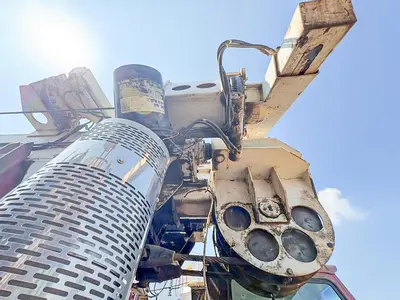

TOP HEAD DRIVE:
Heavy Duty, Single Reduction Gearbox With 4 Two-Speed Disc Valve Type Hydraulic Motors
Infinitely Variable Rotation Speed Via HRC Control
Torque: 0 - 90 RPM @ 17,750 Ft-Lbs (24,066 N-M). 0 - 180 RPM @ 7,670 Ft-Lbs (10,399 N-M)
Rotation Speed: 0 - 180 RPM
Maximum Operating Pressure: 3,000 Psi (208 Bar)
FEED SYSTEM:
50 Ft (15.24 M) Head Travel
200,000 LBF (890 kN) Pullback
100 Fpm (30.5 M/Min) Pullback Speed
32,000 LBF (142 kN) Pulldown
200 Fpm (61 M/Min) Pulldown Speed
DRILL TABLE
Table Opening: 30 Inches (768 Mm) Diameter With Table Retracted
Hydraulically Retractable Slip Box
DRILL PIPE AND CASING:
Range III Tubular Capability
30.25 inch (768 mm) Maximum Diameter Through The Slip Box

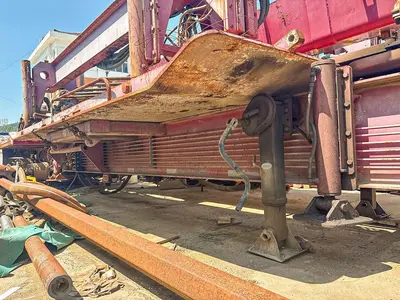

OUTRIGGERS
Dual Front - 5 inch (127 mm) bore x 36 inch (0.91 m) stroke
Dual Rear - 5 inch (127 mm) bore x 41 inch (1.04 m) stroke
WINCH:
Planetary Design With Spring Applied Hydraulic Release Brake
9,600 LBF (42.7 Kn) Bare Drum Line Pull
150 FPM (46 M/Min) Bare Drum Line Speed
HYDRAULIC SYSTEM:
Open Loop Load Sensing System
210 Gallon (795 L) System Capacity
7 Micron Filtration
ELECTRICAL SYSTEM:
24 Volt DC Electrical System
RIG WEIGHT AND DIMENSIONS:
Note: For General Illustration Only, Varies With Rig Configuration
OA Length, Transport: 50 ft (15.2 m)
OA width: 9 ft 6 inches (2.9 m)
OA Height, Transport: 14 ft (4.27 m)
Typical: 118,000 lbs (53,524 kg)
STANDARD ACCESSORIES:
Tool Box, Pipe Handling Sling, Breakout Wrench
50 Hour Maintenance Kit
TUBING HANDLING:

IRON ROUGHNECK:
A Hydraulic Roughneck On The Rig Eliminates Manual Tongs And The Typical Risks Associated With Their Use While Tripping Drill Pipe

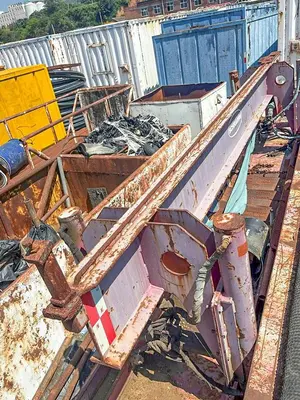

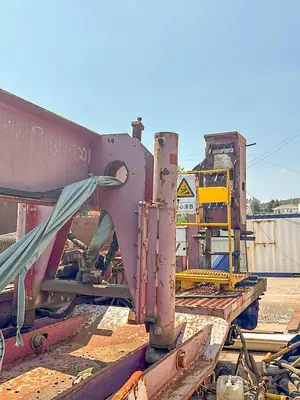

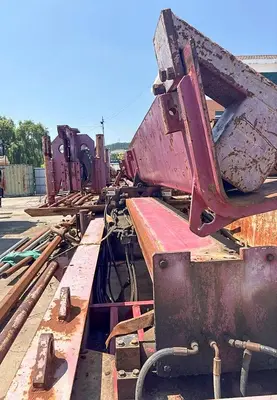

SCHRAMM LOADSAFE, BUILT TO HANDLE DRILL PIPE, COLLARS OR CASING SAFELY AND EFFICENTLY:
LoadSafe® automated system is fully integrated into the TXD rig rated at 200,000 lb hoist, and is also
LoadSafe® is fed from hydraulically operated pipe racks set up in the horizontal position, eliminating “crow’s nest” safety concerns found in traditional vertical pipe handling systems.
Drill pipe or Range III casing is lifted from rack position into alignment with the tilting top head of the rig.
Hydraulic breakout-jaw system clamps pipe for quick and safe transition to the top head spindle.
Auto index device is designed to feed one pipe at a time.
Hydraulic racks stow on the loader for ease of transport. Racks can be positioned to load pipe from either side.
Trailer mounted design is easy to transport into tight spaces and can be set up and placed into full operation in a matter of minutes.
Hands Free Operation
Range III casing capability up to 47 ft (14.33 m) long
Tubular range up to 30 inches (760 mm) diameter
Lift capacity to 5,000 lbs (2,268 kg)
Single Or Double Sided Pipe Rack Configurations Available At Additional Cost

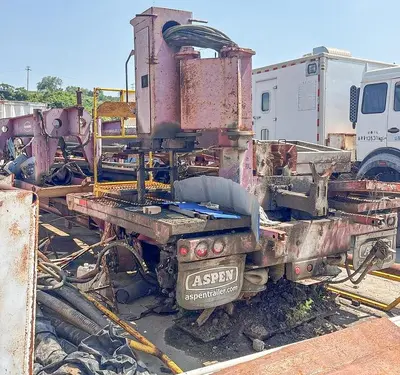

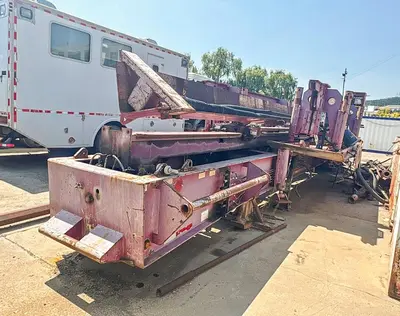

TRAILER:
Dedicated Use Tandem Axle Trailer Is Equipped with (8) 275 / 70R22.5 tires (44,400 lb or 20,140 kg rating) on 10 Hole Disc Aluminum Wheels
25K Tandem Axle Air Ride Suspension
ABS Brakes
DOT Lights
12 Volt Electrical System And 2 Inch (51 Mm) King Pin
TUBULAR HANDLING:
Maximum tubular length 47 ft (14.33 m) Range III
Maximum weight capacity 5,000 lbs (2,268 kg)
Tubular diameter up to 30 inches (762 mm) with jaws removed
Maximum jaw size 17 inches (432 mm)
Slide travel 8 ft (2.4 m)

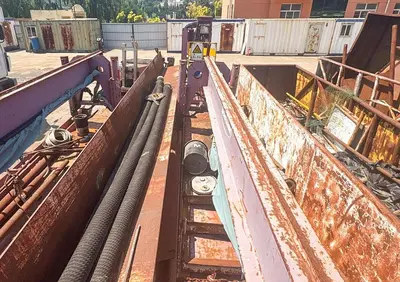

SKID MOUNTED HYDRAULIC PIPE RACKS:
Racks Hydraulically Raise And Lower To Roll Pipe, Collars And Casing Into Feed Or Discharge Position
Rack Loading Area Width 166 Inches (4.22 M), With Adjustable Height From 47 Inches (1.19 M) To 77 Inches (1.96 M) To Allow Transfer Of Tooling From Standard Pipe Hauling Trailers
Racks Can Be Positioned Between Pipe Transport Trailers, Flat Bed Trucks Or Staging Racks
WEIGHT AND DIMENSIONS:
Transport Length 40 Ft (12.19 M)
Transport Width With Hydraulic Pipe Racks Stowed 10 Ft 2 Inches (3.1 M)
Weight Of Trailer Only 24,500 Lbs (11,113 Kg) Approximate
Weight Of Trailer And Racks In Stowed Position 33,500 Lbs (15,195 Kg) Approximate
VIDEOS AND MANY MORE PICTURES AVAILABLE UPON REQUEST.
