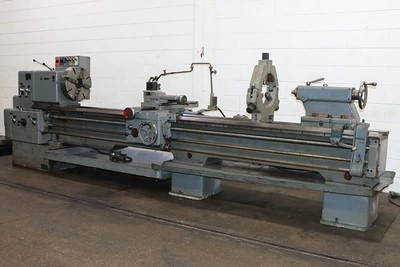

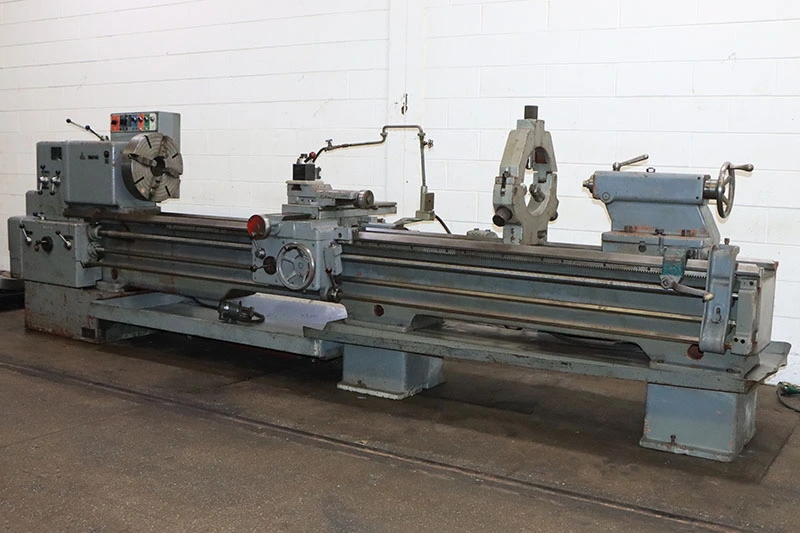

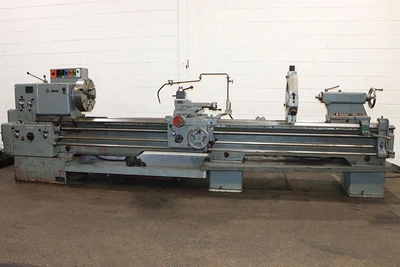

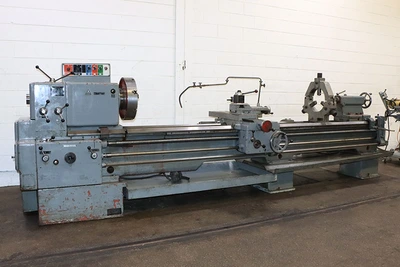

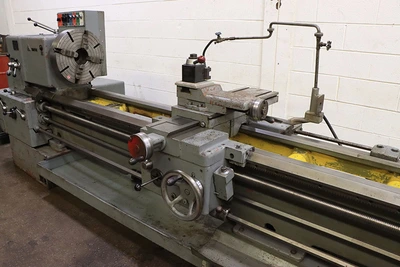

USED 1973 Tos SN63B

25"/34.5" X 120" TOS REMOVABLE

GAP BED ENGINE LATHE,

MODEL: SN63B, S/N: 063373159, NEW 1973

SPECIFICATIONS:

SWING OVER BED & CARRIAGE WINGS ........... 25"

SWING OVER CROSS SLIDE .................... 13.5"

SWING OVER GAP ............................ 34.5"

LENGTH OF GAP FROM SPINDLE NOSE ........... 15.25"

DISTANCE BETWEEN CENTERS .................. 120"

WIDTH OF BED .............................. 18"

SPINDLE SPEEDS (16) ....................... 10 - 1,000 R.P.M.

SPINDLE HOLE .............................. 2.75"

SPINDLE TAPER ............................. D1-8"

HEADSTOCK SPINDLE CENTER TAPER ............ NO. 5 MORSE

FEED CHANGES (38):

    LONGITUDINAL ........................ .002 - 0.242 IPR

    CROSS ............................... .001 - 0.121 IPR

THREADS-INCH .............................. 1 TO 80 T.P.I.

THREADS-METRIC PITCH ...................... 0.5 - 4.0 MM

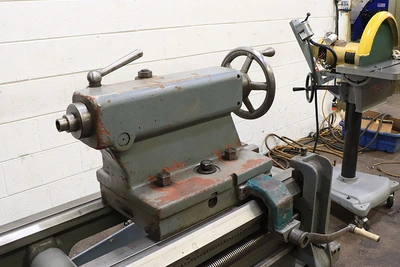

TAILSTOCK SPINDLE DIAMETER ................ 3.5"

TAILSTOCK SPINDLE TRAVEL .................. 9.5"

TAILSTOCK SPINDLE CENTER TAPER ............ NO. 5 MORSE

APPROXIMATE DIMENSIONS .................... 200" x 60" x 62"

APPROXIMATE WEIGHT ........................ 10,500 LBS.

EQUIPPED WITH:

- REMOVABLE GAP BED

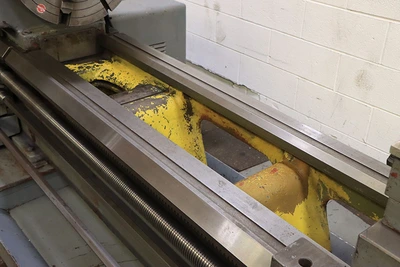

- HARDENED AND GROUND BEDWAYS

- QUICK CHANGE GEARBOX WITH INCH/METRIC THREADING CAPABILITY

- TAPER TURNING ATTACHMENT

- 3-JAW ROHM CHUCK

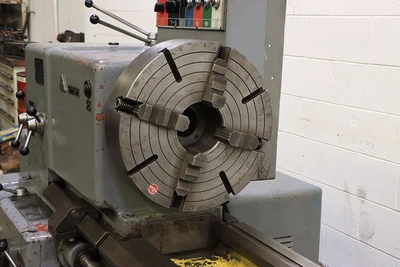

- 4-JAW ROHM CHUCK

- FACEPLATE

- FOLLOW REST

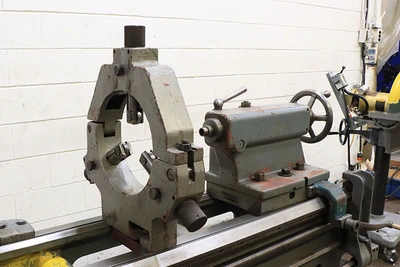

- 12" DIAMETER CAPACITY THREE POINT ROLLER-TYPE STEADY REST

- QUICK CHANGE TOOLPOST WITH TWO HOLDERS

- MICROMETER CARRIAGE STOP

- THREADING DIAL

- REMOVABLE CHIP PAN

- 1 HORSE POWER RAPID TRAVERSE MOTOR

- 10 HORSE POWER MAIN DRIVE MOTOR AND ELECTRICAL CONTROLS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:    ****  EXCELLENT  ****

FOR MORE INFORMATION: Call David at 973-497-7570
