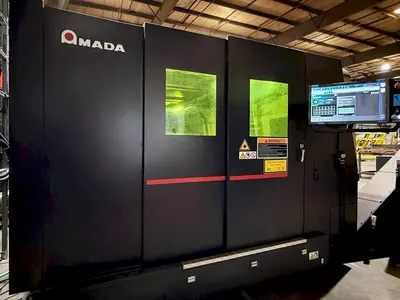

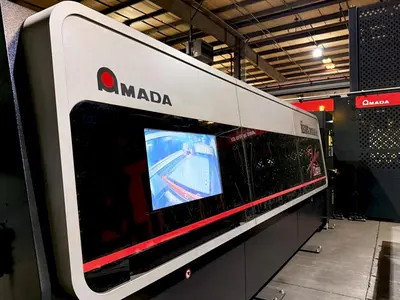

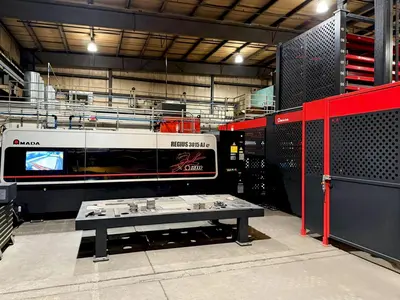

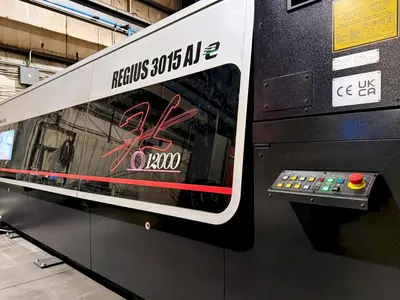

USED 2023 AMADA REGIUS 3015 AJE FIBER
Overview

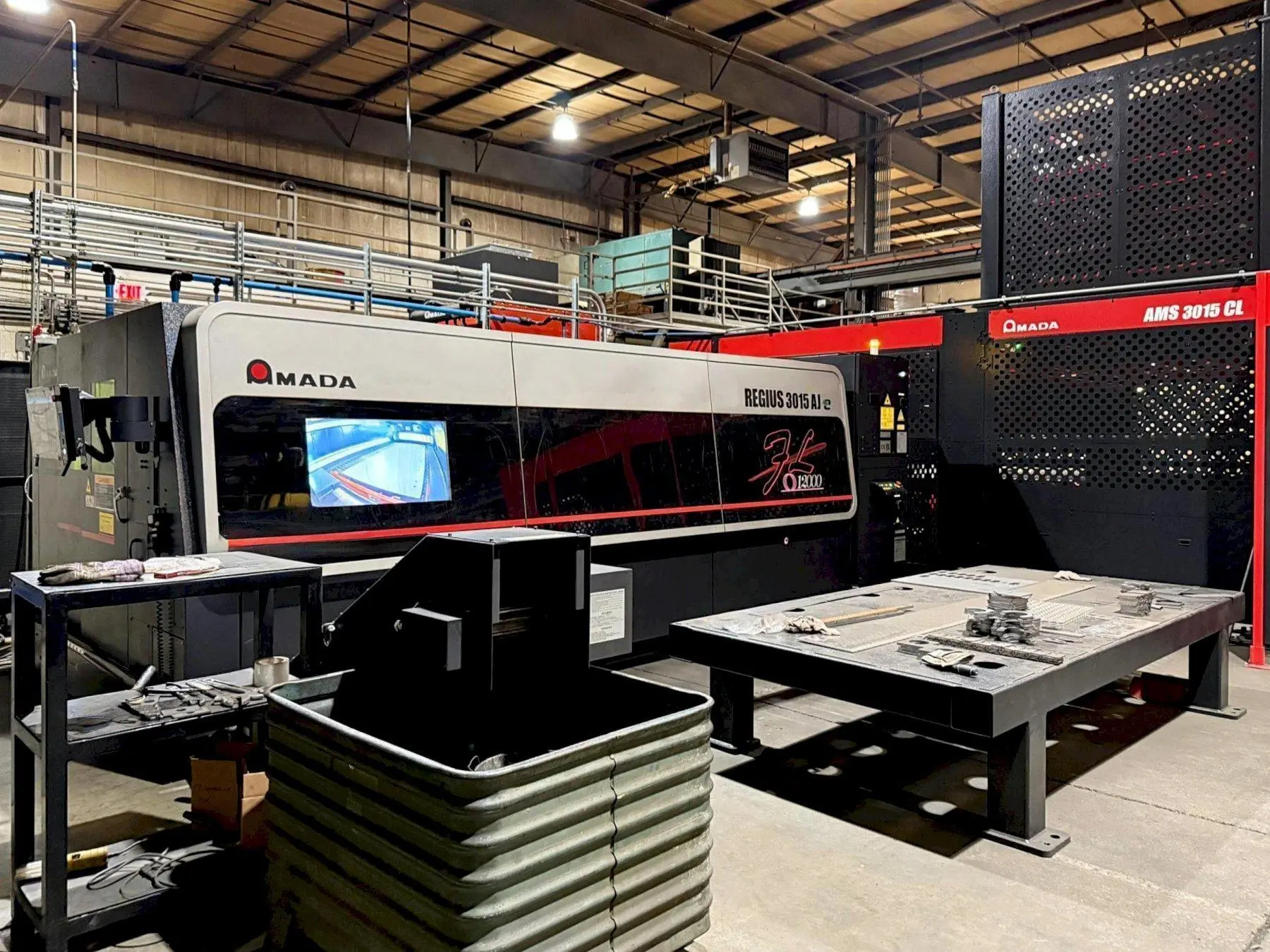

Like New Condition - Includes L/UL and Sheet Storage Tower.
Specs

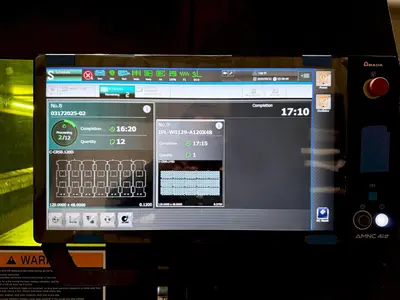

Control: AMNC 4ie CNC
Display: Touchscreen Color LCD
Control Function X,Y,Z: Sim. Focus Lens B-Axis
Max. Sheet Size X,Y: 120" x 60"
Max. Axis Travel X,Y,Z: 121" x 61" x 3.93"
Travel Method: X,Y-Axis Stationary Table
Travel Method: Z-Axis Movement Cutting Head
Control Method X,Y,Z: Sim. 3-Axis Control
Drive Motors: Fanuc AC Servo Motors
Max. Axis Pos. Speed X,Y: 9,448"/min. Per Axis
Max. Axis Pos. Speed X,Y (45° 5G Acceleration): 13,380"/min.
Max. Z-Axis Speed: 4,724"/min.
Repeatability: 0.00002"

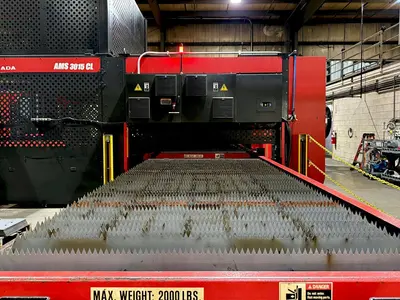

Max. Material Weight: 2,000 lbs.
Data Storage: Compact Flash Drive
Resonator Type: Fiber
Resonator: LD Excited YB Fiber
Power Output: 12KW (12,000 Watts)
Laser Wavelength: 1.08 m
Power Stability: ±2%
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1–10000Hz
Pulse Duty: 0–100%
Assist Gas: 3 Ports w/ NC Pressure Control
Laser Beam Mode Output: Multimode
Max Thickness Mild Steel: 1.00"
Max Thickness Aluminum: 1.00"
Max Thickness Stainless Steel: 1.00"
Electrical Req.: 208V, 3-Phase, 60Hz / 79kVA Max.
Equipped With
LD Excited YB 12kW Fiber Power Source
AMNC 4ie CNC Control
Interlocked Enclosure
i-Nozzle Checker
i-Process Monitor
i-Optic Sensor
Automatic Collision Recovery
i-Camera System
Dual Gas System
Automatic Nozzle Changer
WACS II™ - (Water Assist Cutting System)
Smart Edge
NC Assist Gas
B-Axis NC Focus
Integrated Beam Purge

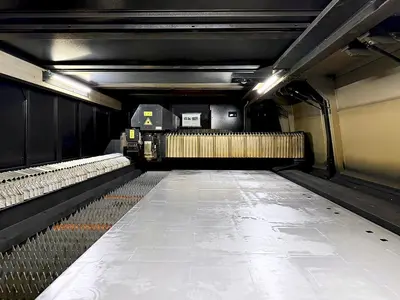

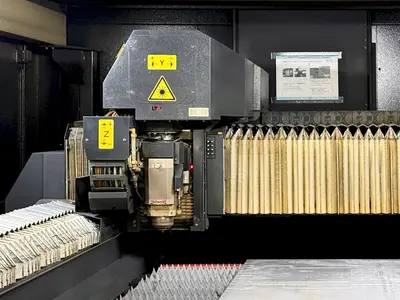

High-Speed Cutting Head
X and Y Scrao Conveyor
Clean Cut™

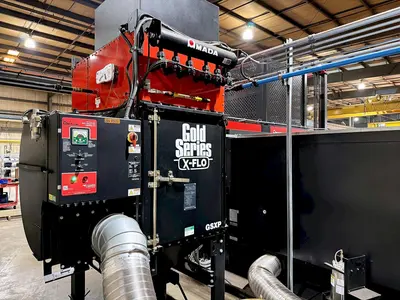

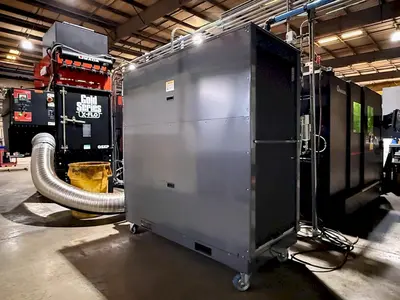

Camfil Dust Collector
Orion Chiller Unit

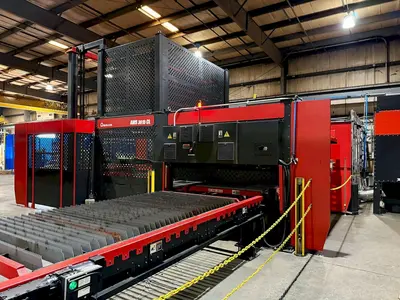

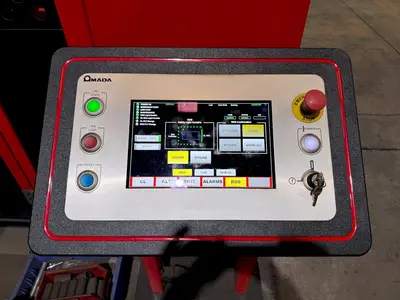

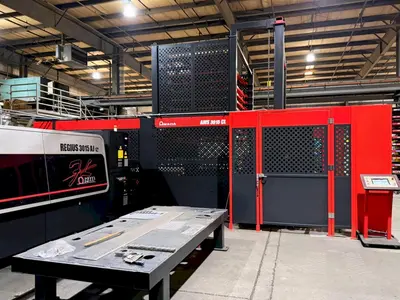

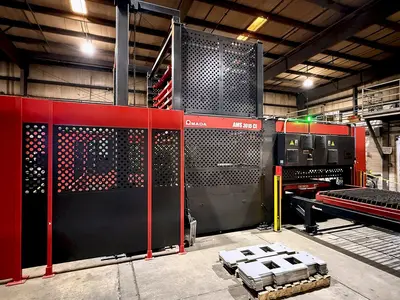

AMS 3015 CL Sheet Load/Unload

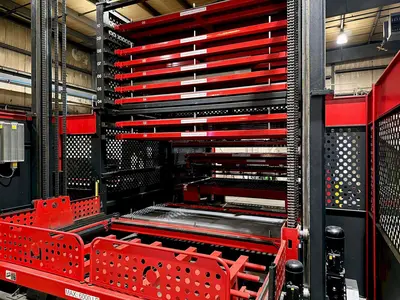

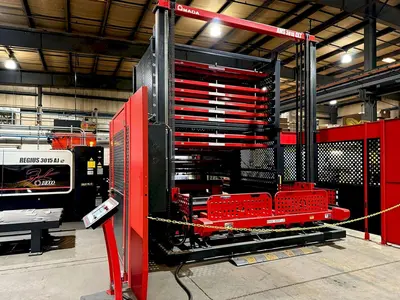

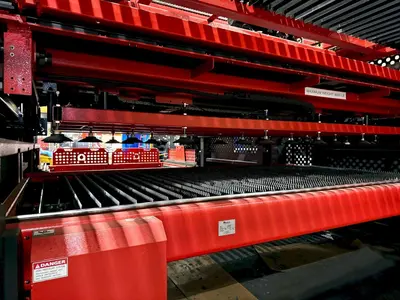

AMS CLT - Multi 10 Shelf Tower
