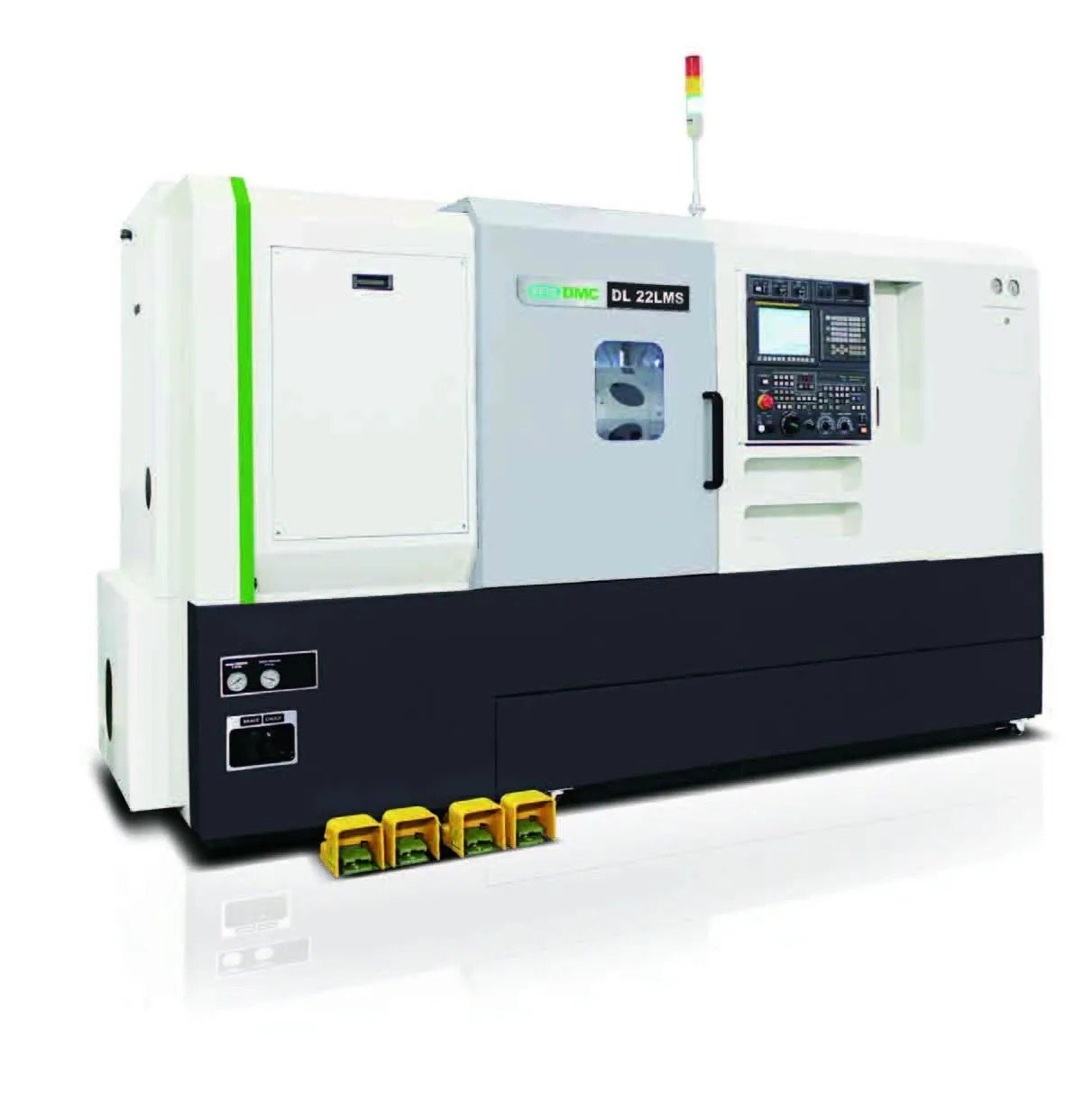

DMC DL22LB CNC Lathe Fanuc 0iT Ctrl, 10" Chuck, 3.38” Spindle Bore, 3500rpm, 25hp, 14.96 Max Turn Length, 21.65 Max Swing, 15.35 Max Turn Dia., 12 Station Turret, 8.26” x 22.83” Travels, Tailstock, Programmable Quill, Chip Conveyor, Bar Feeder Interface, Tool Presetter, Parts Catcher, New 2019 *New in Original Crate, Located in California*
| Swing | 21.65" | 549.91 mm |
| Max. Turning Length | 20.87" | 530.1 mm |
| Max. Turning Diameter | 15.35" | 389.89 mm |
| X-Axis | 8.27" | 210.06 mm |
| Z-Axis | 22.83" | 579.88 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.99" | 75.946 mm |
| Spindle Bore | 3.39 in | |
| Spindle Nose | A2-8 | A2-8 |
| Power | 25 hp | 18.6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turret Stations | 12 | 12 |
| Dimensions | 116.54" x 64.96" x 74.8" | 116.54" x 64.96" x 74.8" |
| Weight | 9,810 Lbs | 9,810 Lbs |
Fanuc 0i-T CNC Control
X/Z Box Way
Automatic (Servo) Tailstock
Programmable Quill
Chip Conveyor
Bar Feeder Interface
Tool Presetter
Parts Catcher
