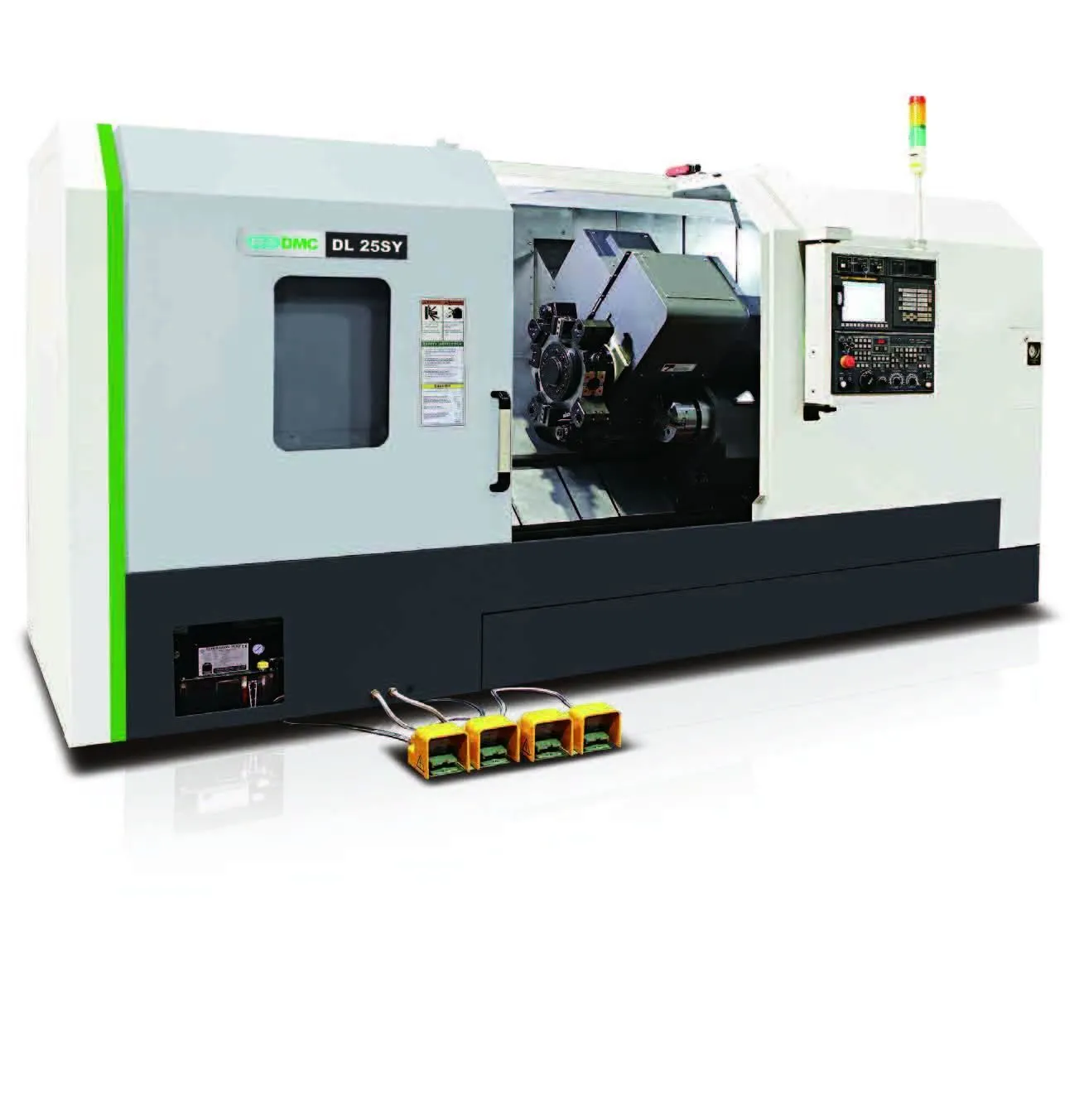

(2) DMC DL25SY CNC Lathe w/ Milling, Fanuc 0iT Ctrl, 8" Chuck Main, 3.39” Spindle Bore Main, 4000 RPM 25HP, 6” Chuck Sub, 1.57” Sub Spindle Bore, 6000rpm, 10hp, 39” Max Turn Length, 27.95” Max Swing, 15.75” Max Turn Dia., 12 Station Turret, 8” x 41” Travels, 37” B-Axis, +/- 2.17 Y-Axis, Chip Conveyor, Bar Feeder Interface, Tool Presetter, Parts Catcher, Parts Ejector, New 2019 *1 of 2 New in Original Crate in California, 2nd Machine Located in Maine*
| Swing | 27.95" | 709.93 mm |
| Machining Length | 39.37" | 1,000 mm |
| Max. Turning Length | 39.37" | 1,000 mm |
| Max. Turning Diameter | 15.75" | 400.05 mm |
| X-Axis | 8.27" | 210.06 mm |
| Y-Axis | ±2.16" | ±2.16" |
| Z-Axis | 41.34" | 1,050 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.99" | 75.946 mm |
| Spindle Bore | 3.39 in | |
| Spindle Nose | A2-8 | A2-8 |
| Power | 29.5 hp | 22 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turret Stations | 12 | 12 |
| Sub Spindle Power | 20.12 hp | |
| Sub Spindle Max RPM | 6000 rpm | 6,000 RPM |
| Sub Spindle Chuck | 6 in | |
| Sub Spindle Bar Capacity | 2.56 in | |
| Sub Spindle Bore | 2.99 in | |
| Sub Spindle Nose | A2-6 | A2-6 |
| Dimensions | 161.48" x 78.74" x 86.61" | 161.48" x 78.74" x 86.61" |
| Weight | 17,196 Lbs | 17,196 Lbs |
Fanuc 0i-T CNC Control
X/Z Box Way
Chip Conveyor
Bar Feeder Interface
Tool Presetter
Parts Catcher/Parts Catcher
Parts Ejector
