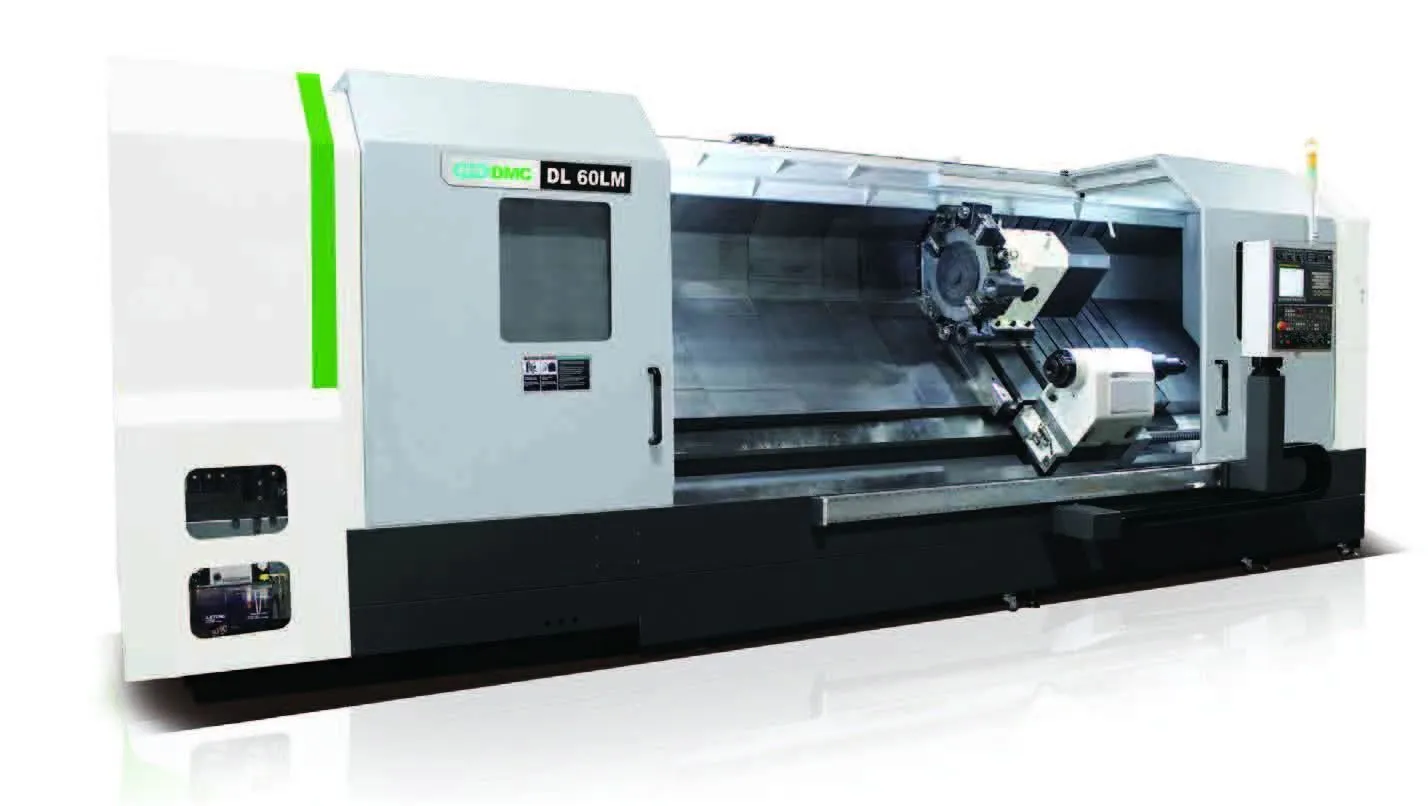

(2) DMC DL60L CNC Lathe, Fanuc 0it Ctrl, 24” Chuck, 7.13” Spindle Bore 1400 RPM, 60HP, 125” Max Turn Length, 40” Swing, 35.43” Turn Dia.,12 Station Turret, 18.5” x 128” Travels, Programmable Tailstock, Programmable Quill, Chip Conveyor, Tool Presetter, Steady Rest, New 2018 *New in Original Crate, Located in California*
| Swing | 40.55" | 1,030 mm |
| Machining Length | 125.98" | 3,199.9 mm |
| Max. Turning Length | 125.98" | 3,199.9 mm |
| Max. Turning Diameter | 35.43" | 899.92 mm |
| X-Axis | 18.5" | 469.9 mm |
| Z-Axis | 128.74" | 3,270 mm |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 6.14" | 155.96 mm |
| Spindle Bore | 7.13 in | |
| Spindle Nose | A2-15 | A2-15 |
| Power | 60.4 hp | 45 kW |
| Max RPM | 1,400 RPM | 1,400 RPM |
| Turret Stations | 12 | 12 |
| Tailstock | Yes | Yes |
| Dimensions | 292.8" x 108.27" x 105.71" | 292.8" x 108.27" x 105.71" |
| Weight | 49,165 Lbs | 49,165 Lbs |
Fanuc 0i-T CNC Control
X/Z Box Way
Programmable Tailstock
Programmable Quill
Chip Conveyor
Tool Presetter
Steady Rest Preparation
