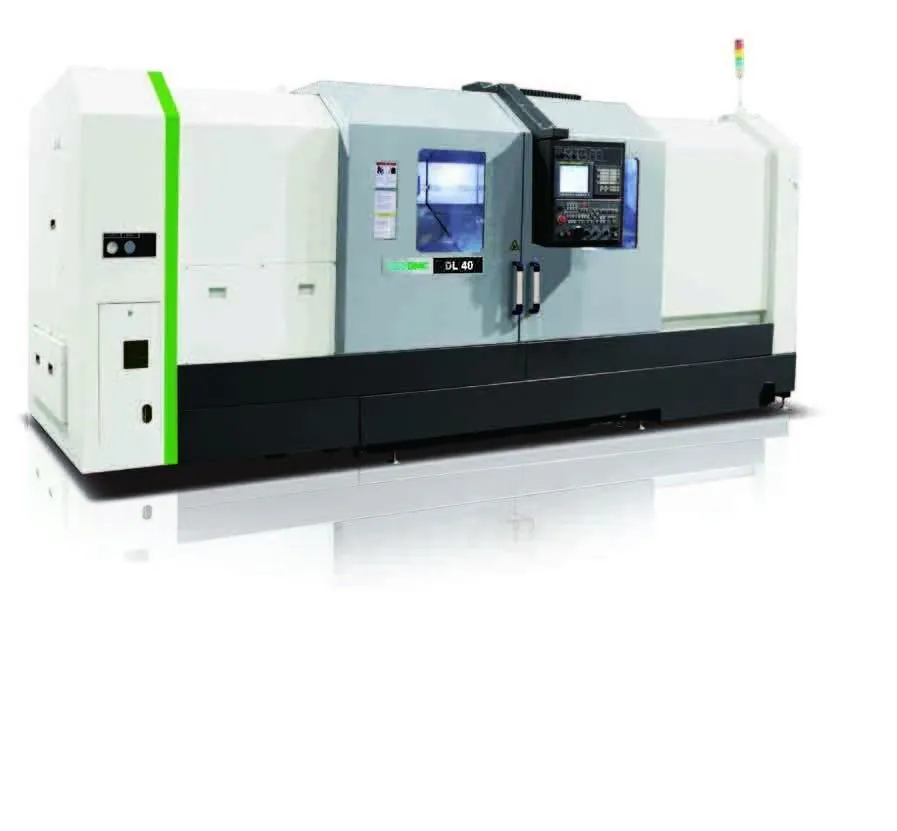

DMC DL40L CNC Lathe, Fanuc 0it Ctrl, 15” Chuck, 5.2” Spindle Bore, 2500RPM, 30HP, 65” Max Turn Length, 29.53” Swing, 22.05” Max Turn Dia., 10 Station Turret, 12.01” x 67.13” Travels, Programmable Tailstock, Programmable Quill, Chip Conveyor, Tool Presetter, New 2018 *Located in Houston, TX*
| Swing | 29.5" | 749.3 mm |
| Machining Length | 65.2" | 1,656.1 mm |
| Max. Turning Length | 65.16" | 1,655.1 mm |
| Max. Turning Diameter | 20.4" | 518.16 mm |
| X-Axis | 12.01" | 305.05 mm |
| Z-Axis | 67.13" | 1,705.1 mm |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4.6" | 116.84 mm |
| Spindle Bore | 5.2 in | |
| Spindle Nose | A2-11 | A2-11 |
| Power | 30 hp | 22.4 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Dimensions | 200" x 73.86" x 90.24" | 200" x 73.86" x 90.24" |
| Weight | 20,062 Lbs | 20,062 Lbs |
Fanuc 0i-T CNC Control
X/Z Box Way. Zf Gearbox
Programmable Tailstock
Programmable Quill
Chip Conveyor
Tool Presetter
