| Max Thickness (gauge) | 9 gauge | 9 gauge |
| Overall Length | 10' | 3 m |
| Control | CNC (Delem) | CNC (Delem) |
| Dimensions | 210”L x 71”W x 88”H | 210”L x 71”W x 88”H |
| Weight | 17,800 lbs. | 17,800 lbs. |
Maximum capacity: 9 GA mild steel
Maximum bending length: 127.5″
Smallest Inside Bend Radius: 1.25x thickness
Minimum Flange Height: 6x thickness
Clamping Beam Stroke: 13.78”
Clamping Beam Speed, Up: 3.27 IPS
Clamping Beam Speed, Down: 1.97 IPS
Clamping Beam Pressure, max and infinitely variable: 45 tons
Folding Beam Speed, max up: 85o deg./ sec.
Folding Beam Speed, down: 113 deg./sec.
Machine Dims: 210”L x 71”W x 88”H
Machine Weight: 17,800 LBS

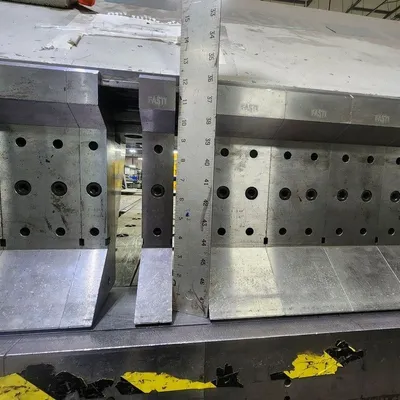

Fully tooled, 12” Tall Upper Goats Foot Tooling
Automatic hydraulic tool clamping
Motorized adjustment for material thickness changes

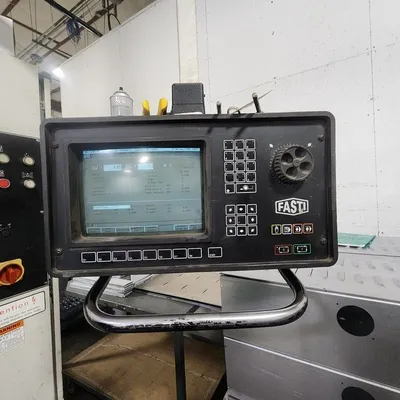

Delem 12″ CNC control with 2D simulation, part collision detection, and automatic bend allowance calculation
MAH25L deluxe “L” shaped backgauge
