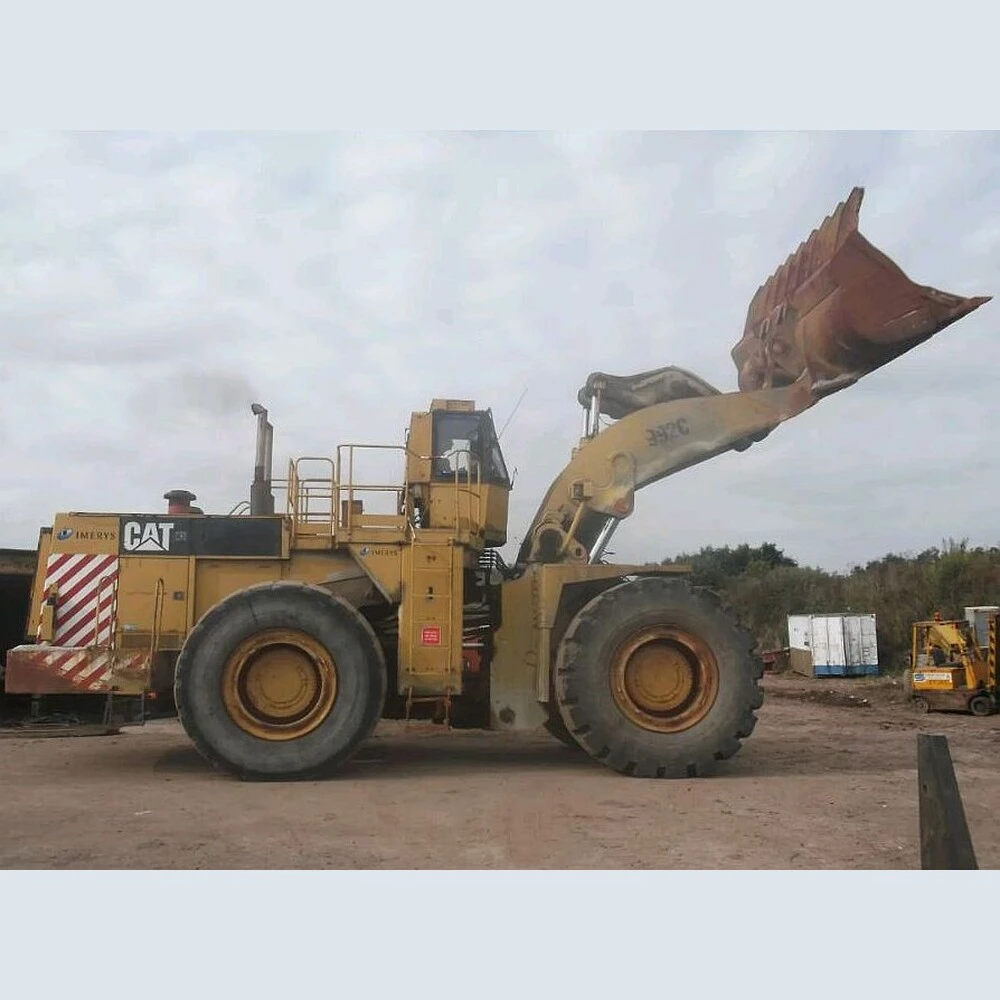

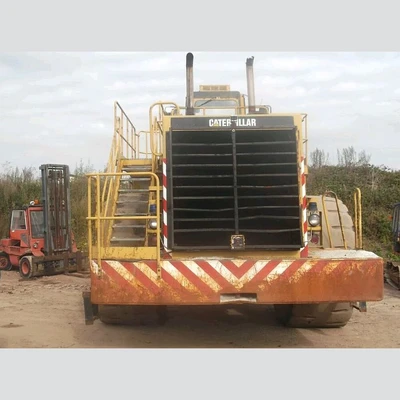

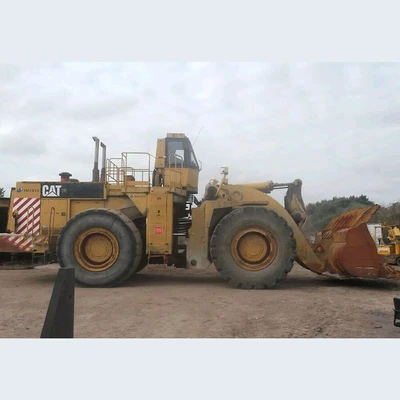

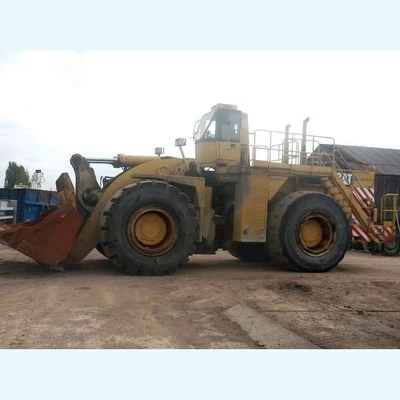

Caterpillar 992C Wheel Loader
Engine:
Model: 3412.
Net Power: 690 hp/514.5 kw.
Displacement: 1647.6 cu in 27 L.
Operational:
Operating Weight: 187789.8 lb/85180 kg.
Fuel Capacity: 300.1 gal/1136 L.
Hydraulic System Fluid Capacity: 142.9 gal/541 L.
Static Tipping Weight: 106483.3 lb/48300 kg.
Transmission:
Number of Forward Gears: 3.
Number of Reverse Gears: 3.
Max Speed – Forward: 13.1 mph 21.1 km/h.
Max Speed – Reverse: 14.5 mph 23.3 km/h.
Hydraulic System:
Raise Time: 12 sec.
Dump Time: 2.5 sec.
Lower Time: 4 sec.

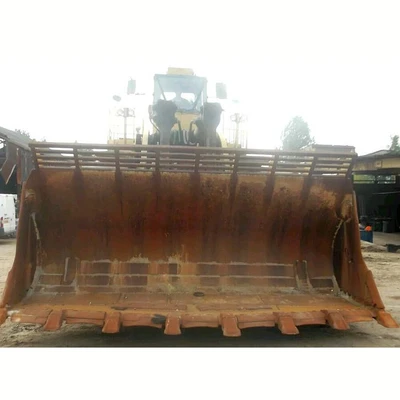

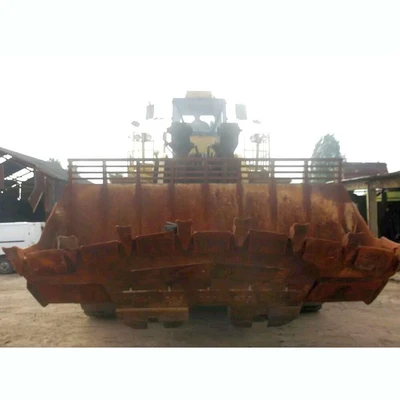

Bucket:
Breakout Force: 147050 lb/kN.
Dump Clearance at Max Raise: 14.8 ft in 4496 mm.
Bucket Width: 15.1 ft in 4597 mm.
Bucket Capacity – heaped: 12.6 yd3 9.6 m3.
Bucket Capacity – struck: 10.7 yd3 8.2 m3.
Dimensions:
Length with Bucket on Ground: 41.7 ft in/12720 mm.
Height to Top of Cab: 28.7 ft in/8740 mm.
Reach at Max Lift and Dump: 6.8 ft in/2083 mm.
Location: England.
