USED 1995 Agie MONDO 20, 1995, FUTURA II CNC, 40 AMPS
Overview
Description
11.8" X Axis 9.8" Y Axis Agie MONDO 20, 1995, FUTURA II CNC, 40 AMPS RAM-TYPE EDM, 9.8Z, EMC,
Specifications

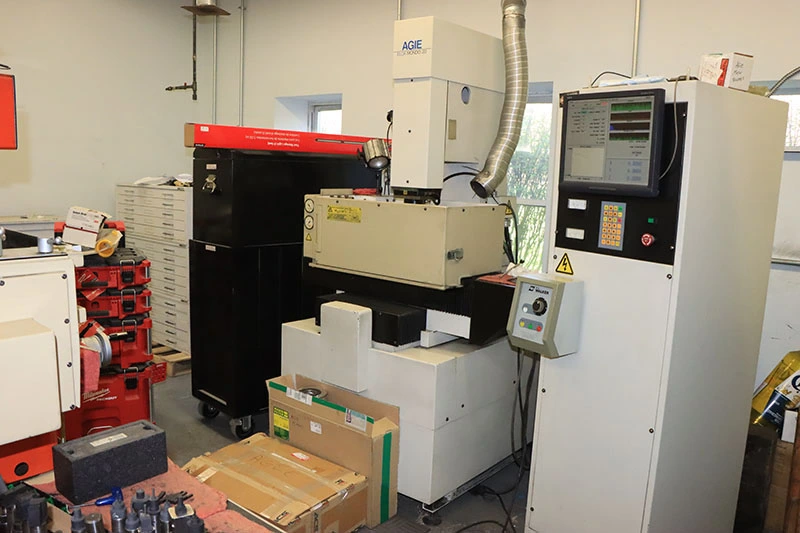

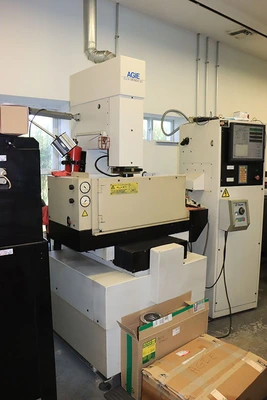

AGIE MONDO 20 CNC RAM TYPE EDM
** MADE IN USA MACHINE **

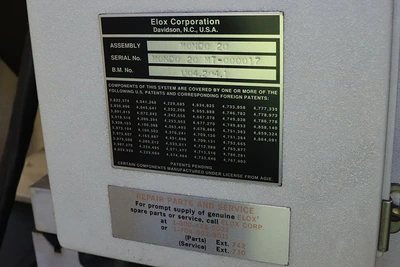

S/N: 000001 NEW: 1995
TRAVELS:
X AXIS ......................... 11.8"
Y AXIS ......................... 9.8"
Z AXIS ......................... 9.8"
WORKTANK INNER DIMENSINS ....... 25" x 17" x 10.6"
WORK TABLE ..................... 15.7 x 11.8"
THROAT CLEARANCE ............... 14.3"
MAX. WORKPIECE WEIGHT .......... 440 LBS.
PLATEN TO TABLE CLEARANCE ...... 10.6" TO 20.4"
MAX. ELECTRODE WEIGHT .......... 55 LBS.
MINIMUM COMMAND UNIT ........... 0.00004"
DIELECTRIC FLUID RES. .......... 66 GALLONS
APPROX. DIMS (MACHINE) ......... 72" x 72" x 94"H
APPROX. DIMS. (AFII) ........... 36" x 46" x 85"H
APPROX. MACHINE WEIGHT ......... 3,000 LBS.
AGIE "FUTURA II" CNC CONTROL
& POWER SUPPLY (40 AMP)
3-AXIS CNC (X, Y, Z)

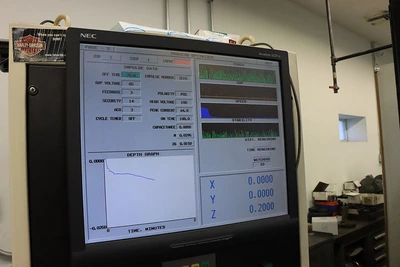

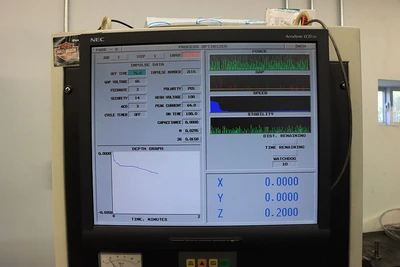

CRT DISPLAY REPLACED WITH COLOR FLAT PANEL DISPLAY
OS OPERATING SYSTEM
RS232C INTERFACE & FLOPPY DISC DRIVE

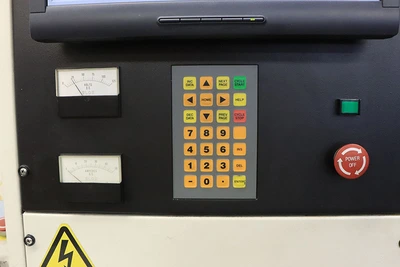

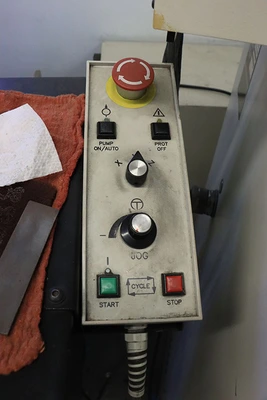

PENDANT CONTROL
WIRED PRESENTLY FOR 230 VOLTS,
12 KVA, 15 FLA
EQUIPPED WITH:

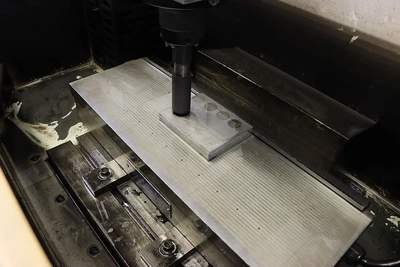

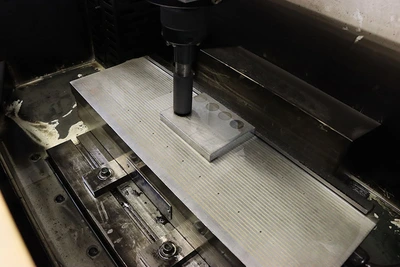

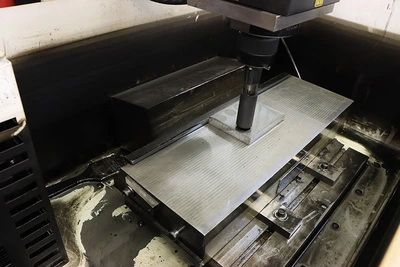

O.S. WALKER FINE-DIVISION "LBP" ELECTRO-MAGNETIC CHUCK

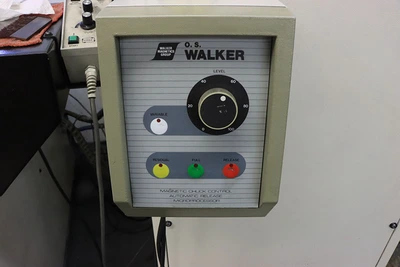

O.S. WALKER SMART SERIES VARIABLE HOLD NEUTROFIER CONTROL
CHUCK/WORKHOLDING UNIT, ON RAM
WORK LIGHT
FIRE EXTINGUISHER
** LOCATION: HARRISON, N.J. **
** ONE OWNER MACHINE - BEAUTIFUL **
** EXCEPTIONAL CONDITION & APPEARANCE **
FOR MORE INFORMATION: Call Andy at 973-497-7600
