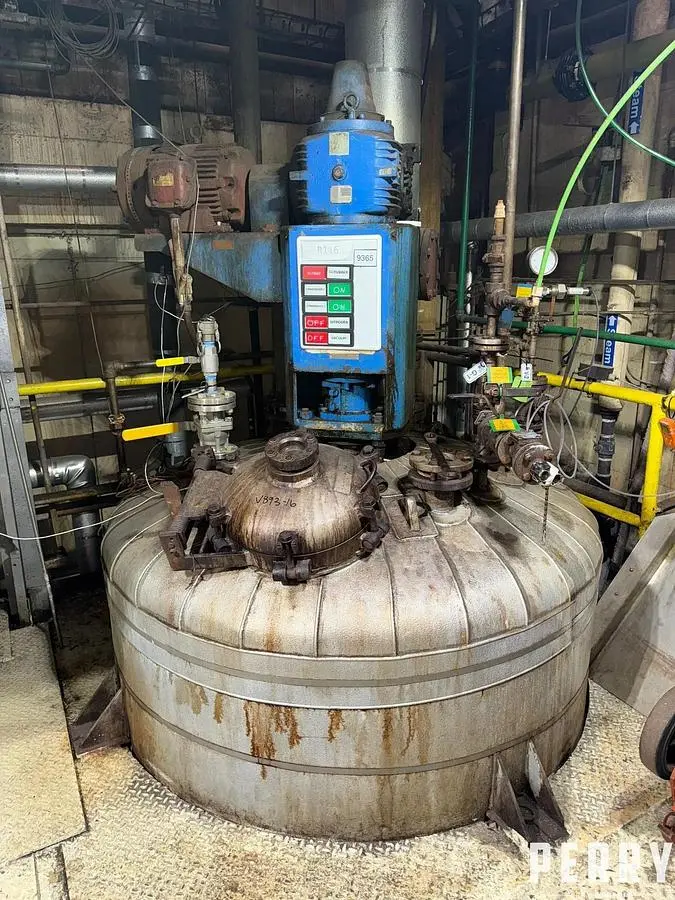

Reactor, 1,500 Gallon, 316L Stainless Steel, Pfaudler, #5991818

Pfaudler 1,500 gallon 316L stainless steel reactor designed for pressure and vacuum processing applications in chemical, pharmaceutical, and specialty manufacturing service. Vessel features 316L stainless steel construction with half-pipe jacket for controlled heating and cooling operations. Reactor is rated for 30 PSI internal pressure/full vacuum at 450°F with jacket rated for 125 PSI at 450°F. Unit includes top center-mounted agitator assembly with mechanical drive arrangement and insulated vessel exterior. Reactor is equipped with multiple top-mounted process nozzles, manway access opening, instrumentation ports, and process connections suitable for batch processing operations. Heavy-duty jacketed construction allows efficient thermal transfer for reaction, blending, and temperature-sensitive processing applications. Suitable for a wide range of sanitary and corrosive product applications requiring stainless steel contact surfaces and pressure-rated operation.

Stock Number: 5991818
Manufacturer: Pfaudler
Gallons: 1,500 (approx.)
Materials of Construction: 316L Stainless Steel
Agitator Type: Top Center-Mounted
Exterior: Insulated
Basis: As Is, Where Is
