NEW Eaton LMK0023058
Overview
Description

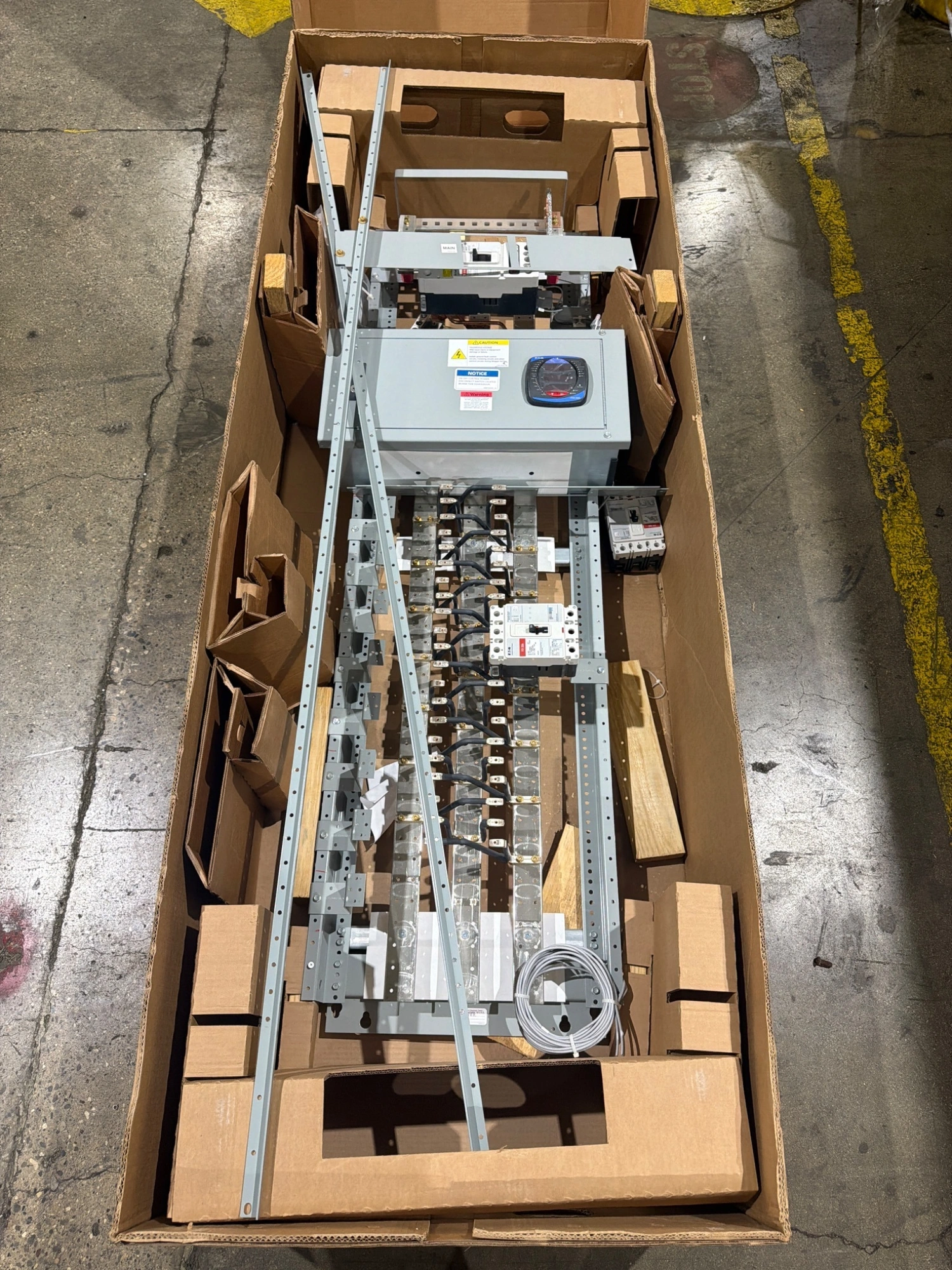

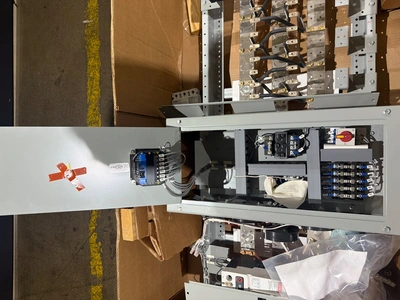

This listing is for a NEW Eaton motor control center panel assembly. This unit is designed to serve as a centralized power distribution and motor control panel used to supply, protect, and monitor multiple electrical circuits in industrial systems. The assembly includes integrated circuit protection and metering components within a modular enclosure suitable for facility installation.
Specifications
| Dimensions | 94 X 34 X 22 | 94 X 34 X 22 |
|---|---|---|
| Weight | 125 LBS | 125 LBS |
Manufacturer: Eaton
Part Number: LMK0023058
Condition: NEW
Equipment Type: Motor control center section
Configuration: Multi-circuit motor control assembly

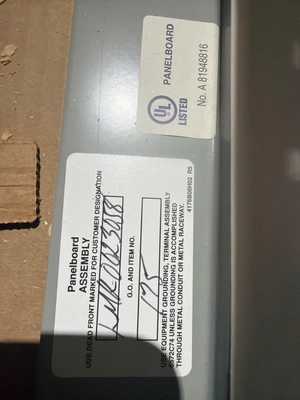

Panel Assembly ID: A819480816

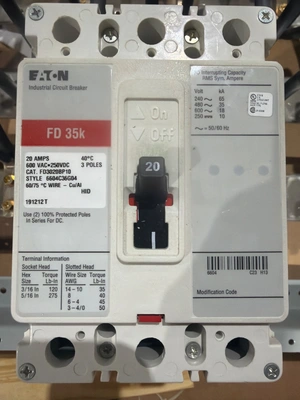

Breaker Type Included: 2 Eaton FD35k Industrial Circuit Breakers
Breaker Rating: 20 A, 3-pole
Breaker Voltage Rating: 600 VAC / 250 VDC
Interrupting Capacity: 65 kA @ 240 V, 35 kA @ 480 V, 18 kA @ 600 V

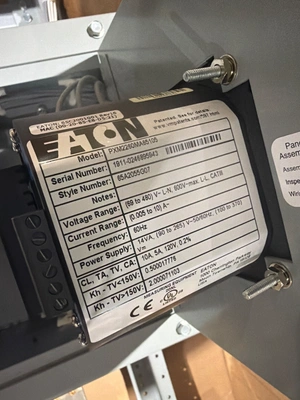

Metering Component: Eaton Power Measuring Module (PXMX2200MA8510)
Voltage Range: 68 to 480 V L-L / 600 V max L-L CAT III
Current Range: 0.005 to 10 A
Frequency: 50 / 60 Hz
Power Supply (Meter): 10.5 to 54 V
Mounting: Floor-standing cabinet section
YOM: n/a
