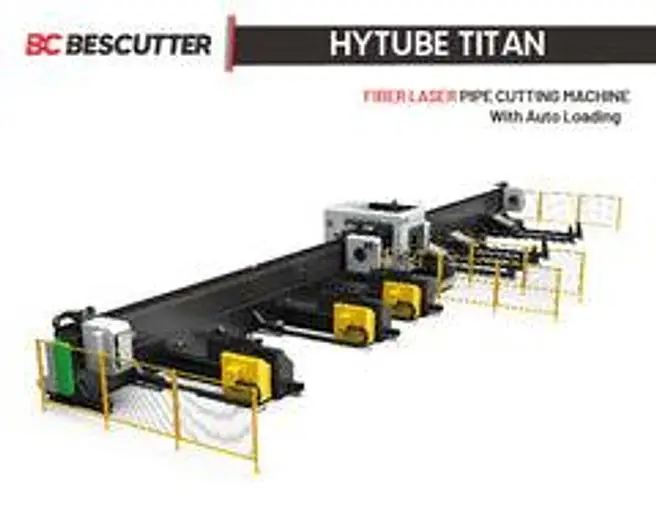

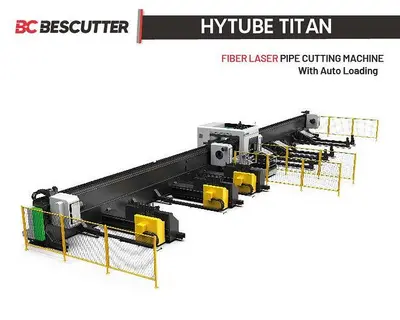

2026 Bescutter Hytube Titan TUBE CUTTER 6000W 20" Dia 4 Chuck Fiber Laser Pipe Cutting Machine

The Hytube Titan TUBE CUTTER 6000W is a state-of-the-art fiber laser pipe cutting machine designed for precision and efficiency. Manufactured by Bescutter, this model is capable of handling tubes up to 40 feet in length and a maximum diameter of 20 inches. Its robust construction and advanced technology make it ideal for a variety of industrial applications.

Equipped with a Hans Photonics 6KW laser and a RayTools laser head, the machine ensures high-quality cutting with positioning accuracy of ±0.05 mm for the X and Y axes. With a maximum positioning speed of 100 meters per minute and a rotation speed of 60 rpm, it offers fast and precise operations. The CNC system is managed by FSCUT5000, providing reliable control and responsiveness.

The machine, weighing 40,000 lbs, measures 984 inches in length, 169 inches in width, and 110 inches in height, excluding the auto-loading system. It also offers optional laser wattage configurations of 3 KW and 4 KW to suit different processing needs. This new tube cutter is an exceptional choice for businesses seeking efficiency, versatility, and precision in tube and pipe cutting.

Tube range (length): 40' (12000 mm)
Tube diameter: Up to 20" cross diagonal
X-axis: 29.5' (9000 mm)
Y-axis: 8.86" (225 mm)
Un-loading tube length: 0- 236" (0-6000mm)
Cnc system: FSCUT5000
X, y-axis positioning accuracy: ±0.05 mm/1000 mm
X, y-axis re-positioning accuracy: ±0.03 mm
A, b-axis positioning accuracy: ±30"
A, b-axis re-positioning accuracy: ±10"
X, y-axis max positioning speed: 100 m/min
Max positioning speed: 60 rpm
Laser resonator: Hans Photonics 6KW
Optional laser wattage: 3 KW/ 4 KW/ 6 KW
Laser head: RayTools
Machine weight: 40,000 lbs
Dimensions (l x w x h): 984"x 169" x 110" (25000 x 4300 x 2800 mm) auto-loading not included
