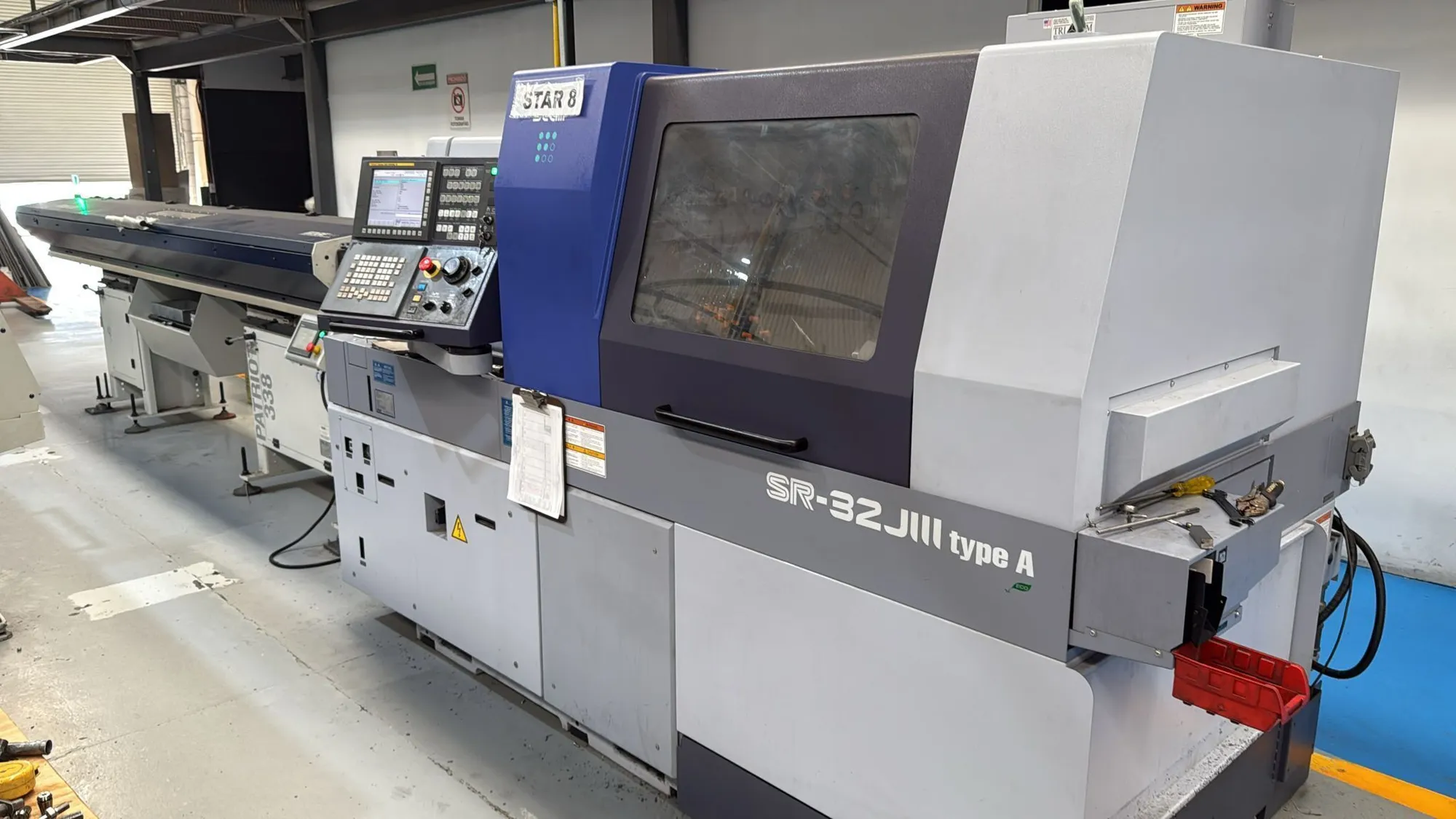

USED 2023 Star SR-32JIII A

2023 STAR SR32JIII Type A CNC Lathe. Features 7-axis precision with 1.25" bar capacity, 10 HP power, and a 7,000 RPM spindle. Maximize efficiency with main spindle capabilities and sub-spindle options. Ideal for high-precision machining tasks.

Bar Capacity: 32mm / 1.25"
Spindle Speed: 7,000 RPM
Spindle Motor: 10 HP
Z Axis Travel: 12.2"
Rapid Rate Z Axis: 944 IPM
Rapid Rate X Axis: 944 IPM
Number of Axis: 7
FONT SIDE:
Main spindle (headstock) Z1 / C1 axis
Tool post 1 X1 / Y1 axis
Max. machining diameter 32 mm / 34 mm (option)
Max. headstock stroke (standard) 310 mm
Max. headstock stroke with flexible guide bush unit 280 mm
Drive power main spindle 7.5 kW
Max. main spindle speed 7,000 rpm
Tools on the tool post
Turning tools 6 tools (16 mm)
Drilling tools
(4-spindle sleeve holder) 4 tools (1 x 32 mm / 3 x 32 mm sleeves)
Cross driven tools 5 tools (ER16)
Speed 5,000 rpm

SUB SPINDLE:
Sub spindle X2 / Z2 / C2 axis
Max. chucking diameter 32 mm
Drive power 3.7 kW
Max. sub spindle speed 7,000 rpm
Backworking tools
Drilling tools
(4-station tool holder) 4 tools (Ø 22 mm sleeve)
Drive unit (standard) 4 tools (ER16)

Edge Patriot 338 Magazine Barfeed, Full 12'
Parts Conveyor
