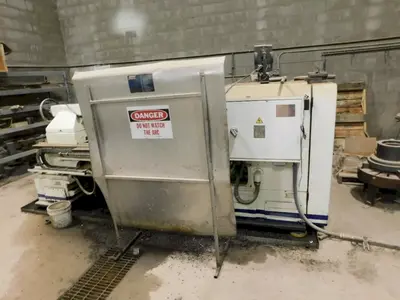

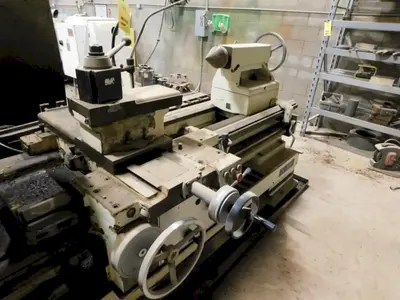

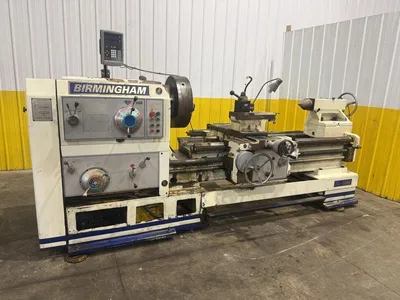

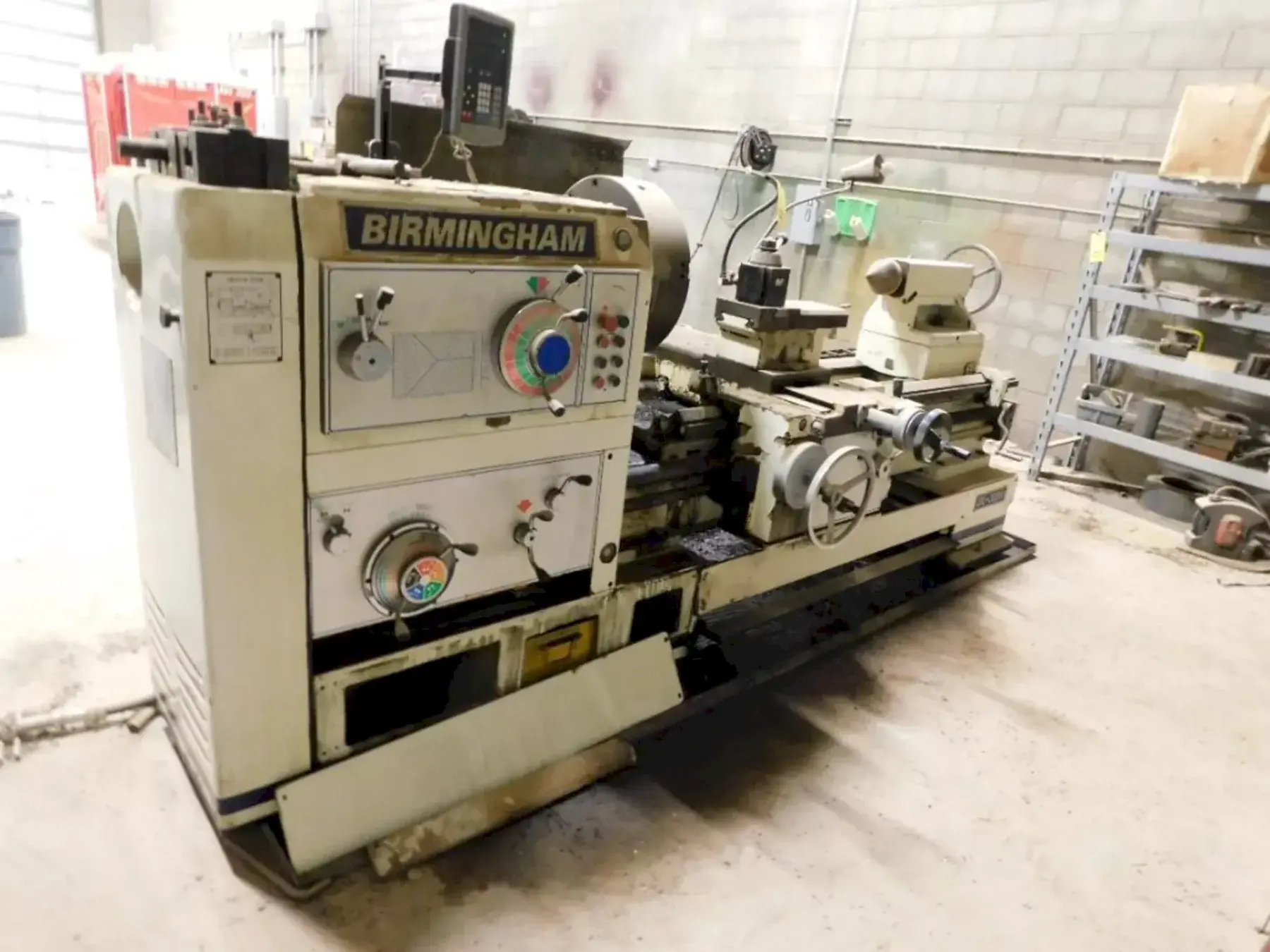

32" X 60" BIRMINGHAM MODEL #DL3260 GAP BED ENGINE LATHE 2006 5" HOLE : YOBRO #25339

SERIAL ....................... F2633
NEW .......................... 08/2006
MODEL ........................ DL3260
SWING OVER WAYS .............. 32"
SWING OVER CROSS SLIDE ....... 20-1/2"
SWING IN GAP ................. 39"
LENGTH OF GAP ................ 12"
CENTERS ...................... 60"
SPINDLE HOLE ................. 5-1/8"
SPEEDS ....................... (18) 7.5 TO 1,000 RPM
TAPER ATTACHMENT
CHUCK ........................ 20" 3 JAW
CHUCK MOUNT .................. D1-11 CAMLOCK
THREADING .................... INCH & METRIC
FEEDS ........................ INCH & METRIC
TAILSTOCK QUILL TRAVEL ....... 9-1/2"
TAILSTOCK QUILL DIAMETER ..... 3-15/16"
DIGITAL READ OUT ............. 2 AXIS
RAPID TRAVERSE ............... 4 WAY
MOTOR ........................ 20 HP

Brand
BIRMINGHAM
Type
Lathes, Toolroom
Stock No.
25339
