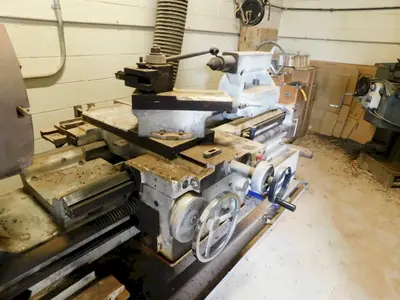

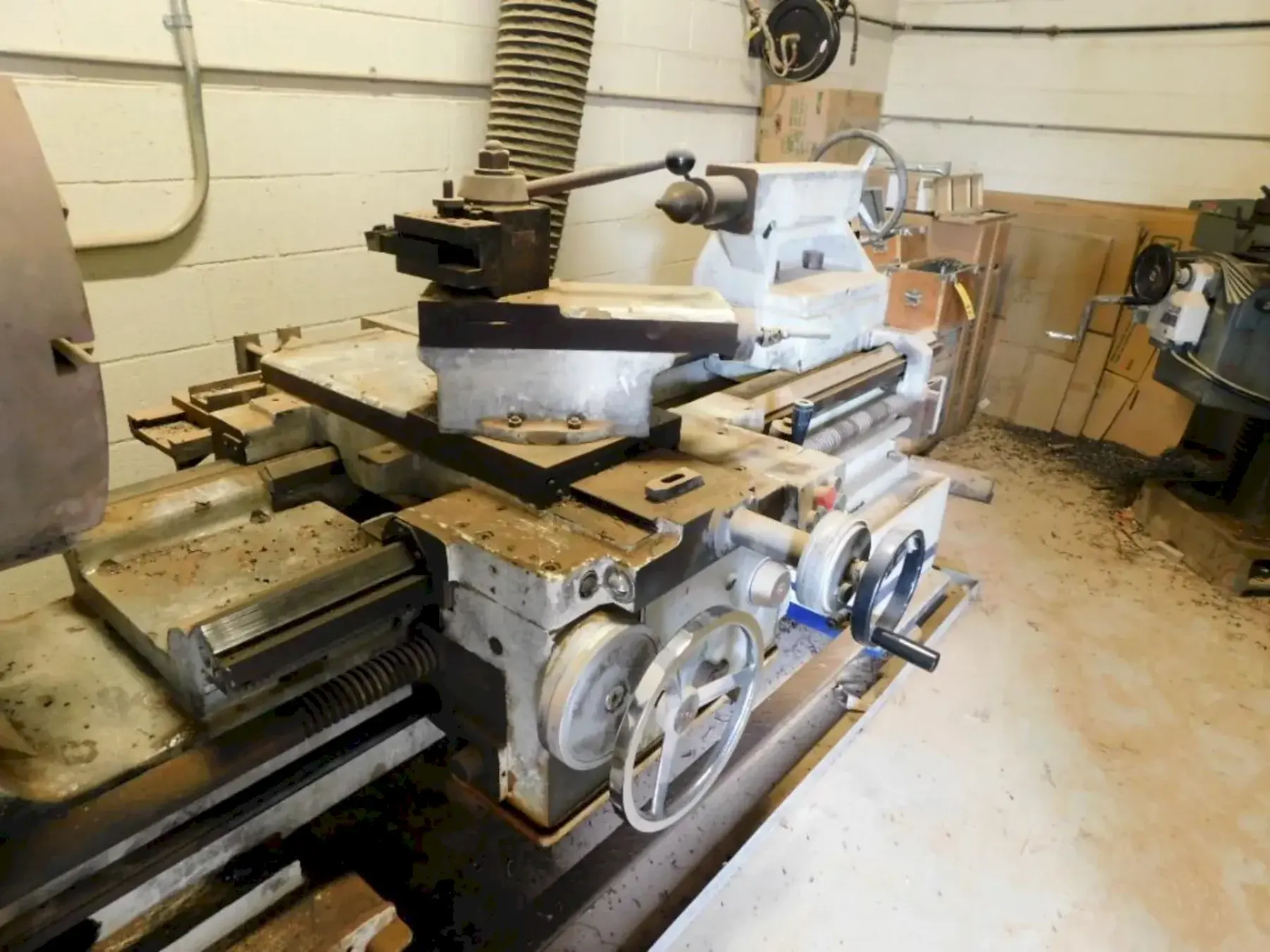

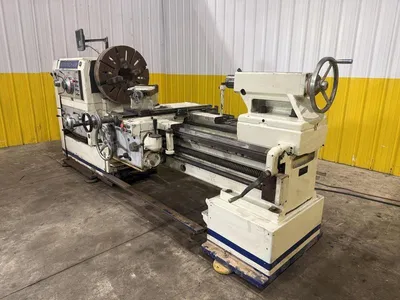

32" X 60" BIRMINGHAM MODEL #DL3260 GAP BED ENGINE LATHE, 2006, 5" HOLE : YOBRO #25340

SERIAL F2633
NEW 08/2006
MODEL DL3260
Swing Over Ways: 32"
Swing Over Cross Slide: 20-1/2"
Swing In Gap: 39"
LENGTH OF GAP 12"
CENTERS 60"
SPINDLE HOLE 5-1/8"
SPEEDS (18) 7.5 TO 1,000 RPM
TAPER ATTACHMENT
CHUCK 25" 4 JAW
CHUCK MOUNT D1-11 CAMLOCK
THREADING INCH & METRIC
FEEDS INCH & METRIC
Tailstock Quill Travel: 9-1/2"
Tailstock Quill Diameter: 3-15/16"
DIGITAL READ OUT 2 AXIS
RAPID TRAVERSE 4 WAY
MOTOR 20 HP

Brand
BIRMINGHAM
Type
Lathes, Toolroom
Stock No.
25340
