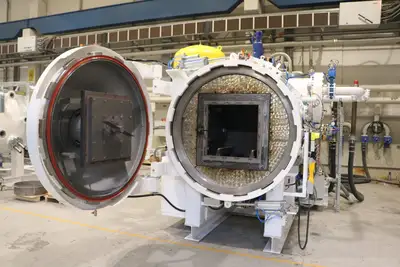

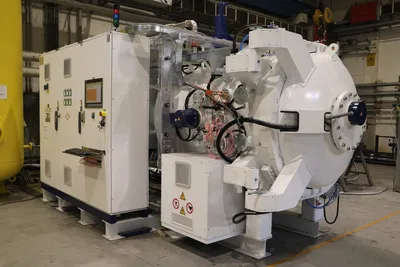

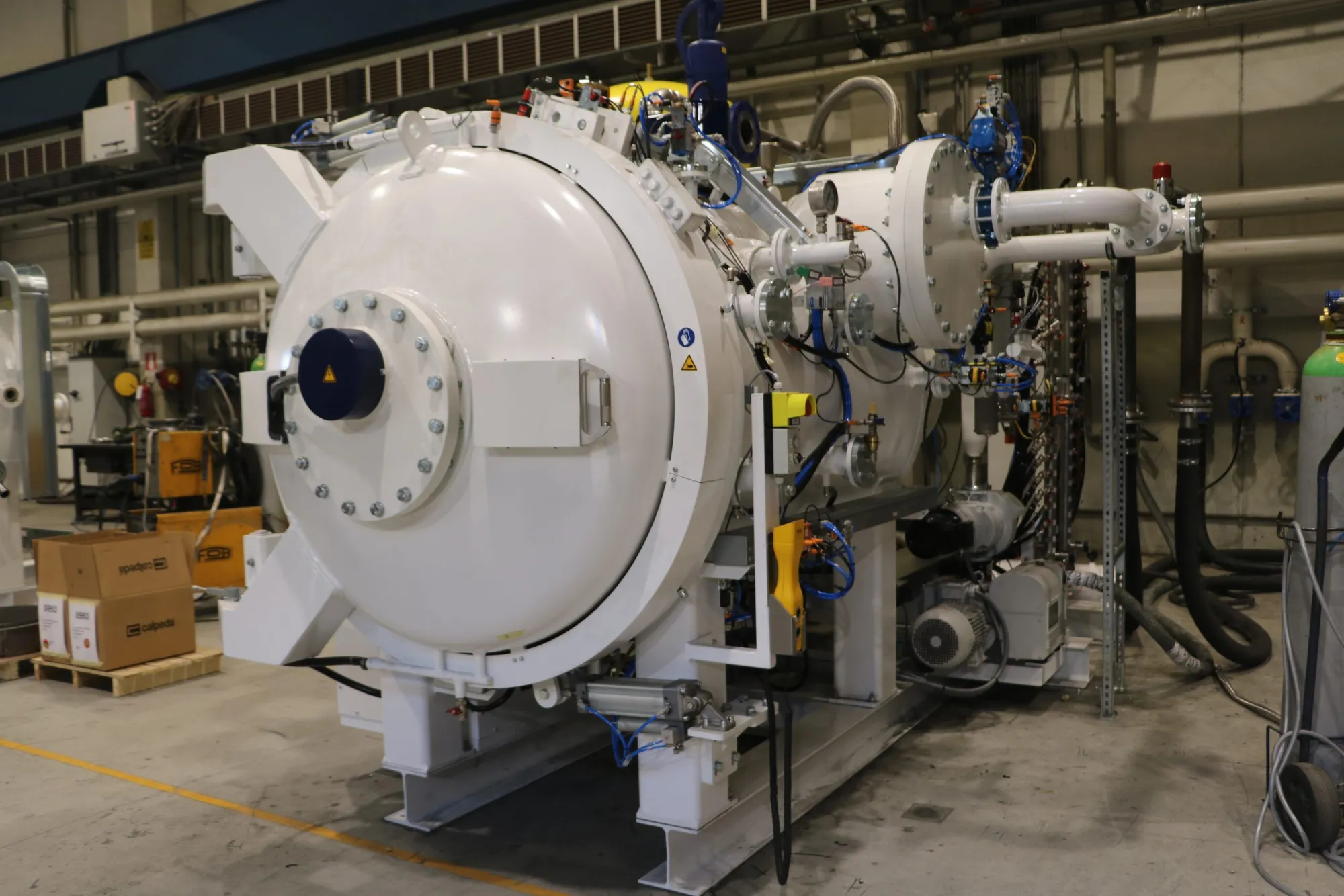

TAV 10 Bar Quenching Vacuum Furnace-Unused

TAV 10 Bar Quenching Vacuum Furnace – Unused. Model H4-S mid-size vacuum furnace designed for precision heat treatment of smaller loads, ideal for laboratory use or small-component production.

Key Components & Features: High-temperature capability up to 2700°F (operating at 2600°F). Convection heating with ±10°F temperature uniformity from 570°F to 1000°F. Inert gas quenching (Ar, N₂) with pressure control from 13 psi to 166 psi (≈10 bar) and inverter-based quench speed adjustment. Rigid graphite hot zone with protective graphite foil and CFC reinforcement. Multi-directional gas flow for optimized part cooling. Nine (9) load thermocouple connections. Teleservice capability and Industry 4.0 compliance.

Manufacturer: TAV Model No.: H4-S

Capacity / Output: 18" W × 18" H × 24" L work zone; 1,000 lb load capacity Maximum Temperature: 2700°F
